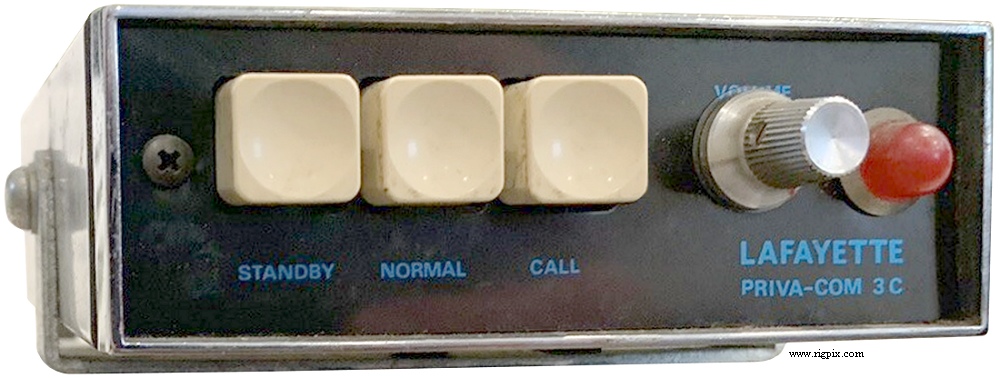

| Type: | Dual tone selcall unit |
| Power supply: | 12 VDC |
| Current drain / power consumption: | ? mA |
| Dimensions (W*H*D): | 91*32*155 mm (3.6*1.25*6.1") |
| Weight: | ? g (? oz) |
| Manufactured: | Japan, 1972-197x (Discontinued) |
| Other: |
Made for Lafayette 12 Volt solid state CB transceivers.
It could be equipped with any two different tuning fork filters for
either 817.5 Hz, 862.5 Hz, 922.5 Hz, 967.5 Hz or 997.5 Hz.
It was shipped with standard tuning fork filters for 817.5 and 997.5 Hz.
New price 1973 in the US: $39.95
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Applicable radios: |
HB-525A
HB-525B
HB-525C
HB-555
HB-600
HE-20T
Telsat 23
And possibly other similar transceivers...
|
