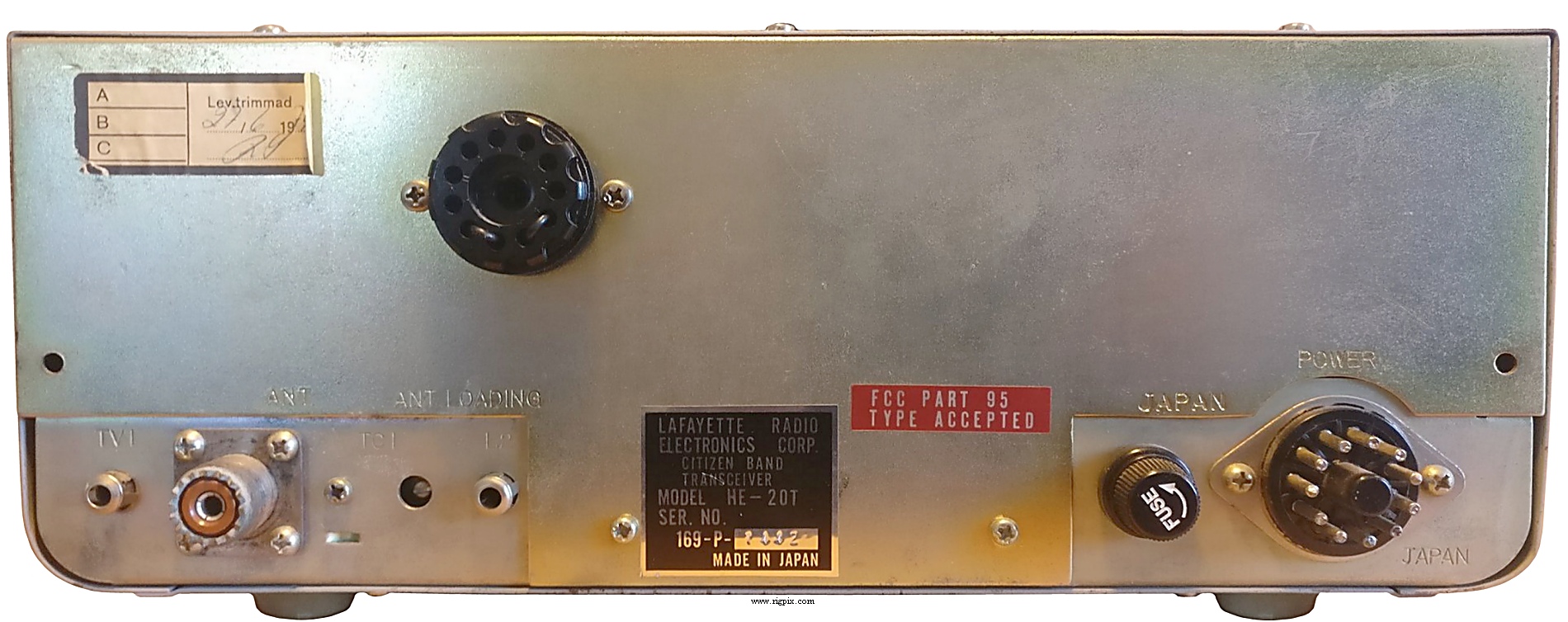

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 12 for RX/TX and 23 for RX |
| Mode: | AM |
| Frequency control: | XTAL for 12 RX/TX channels and VFO for 23 RX channels |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | Mains: 117 / 220 VAC
or 11.5-14.5 VDC |
| Current drain / power consumption: | RX: 150-600 mA @ 12 VDC
TX: Max 1.6 A @ 12 VDC |
| Antenna impedance / connector: | 30-100 ohm / SO-239 |
| Dimensions (W*H*D): | 298*111*200 mm (11.75*4.38*7.88") |
| Weight: | 4.99 Kg (11 lb) |
| Other features: | PA. Spot switch. "Range boost". Priva-Com selcall jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Squelch sensitivity: | |
| Selectivity: | 6 KHz (-6 dB)
12 KHz (-45 dB) |
| Image rejection: | |
| AF output power / speaker: | 4 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin ("Y"-jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1967-197x (Discontinued) |
| Main PCB: | EPO-547 by Cybernet Electronics Corporation
Single sided.Through-hole components. |
| Sub PCBs: | |
| Additional info: |
New price 1967 in the US: $89.95
New price 1969 in Sweden: SEK 985:-
New price 1972 in Sweden: SEK 1145:-
|
| Related documents: |
User manual (7.2 MB)
RF driver: 2SC781
RF final: 2SC799
|
| Market(s) / Approval(s): |
Sweden
Televerket Radio
USA
FCC: Part 95 type accepted
|
| Sams Photofact #: | CB-16 (June 1968) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
Priva-Com III
|
Selcall unit
|
|
