| GENERAL |

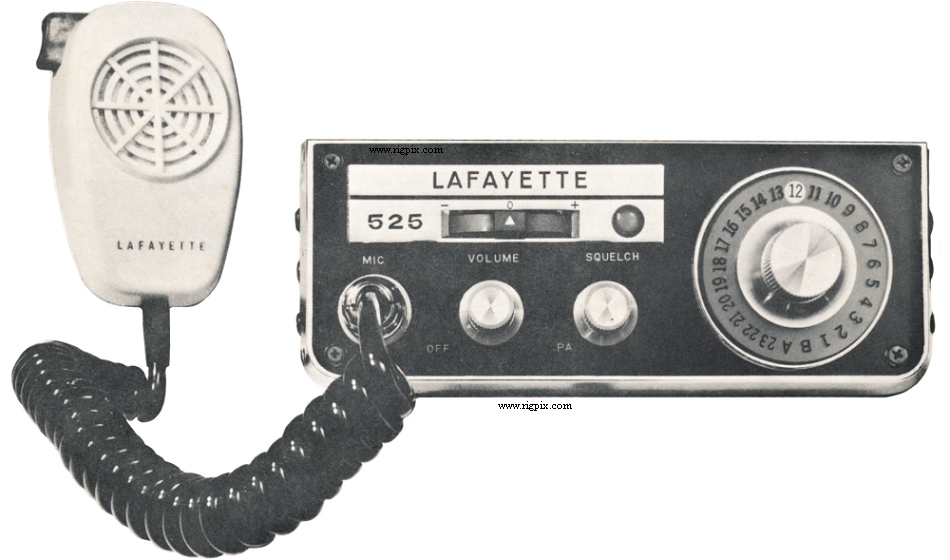

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 25 (1-23 + A and B) |
| Mode: | AM |
| Frequency control: | XTAL matrix |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | ±2 KHz |
| Power supply: | 11.5-14.5 VDC (3-pin connector) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. Range boost. Selcall jack (Priva-Com). |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 11.275 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S/N) |
| Selectivity: | 5 KHz (-6 dB)
16 KHz (-45 dB) |
| Image rejection: | |
| AF output power / speaker: | 2.7 W at ?% distortion / ? ohm |
| External speaker connector: | TS jack (3.5 mm), 8-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-prong "Y"-jack |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1966-196x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
Channel A and B (27.235 and 27.245 MHz) were added for the then
proposed HELP plan (Highway Emergency Locating Program).
|
| Related documents: | User manual (7.5 MB) |
| Sams Photofact #: | CB-15 (September 1967) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
