| GENERAL |
| Type: | Amateur HF/VHF transceiver |
| Frequency range: |
TX: 10-160 m + WARC and 60 m / 6 m (Also 4 m for Europe)
RX: 0.03-75 MHz
|
| Tuning steps: | 1 / 10 Hz (SSB/CW)
10 / 100 Hz (AM/FM) |
| Frequency stability: | ±0.5 ppm @ 0 to 50°C (32 to 122°F), after 1 minute warmup |
| Mode: | AM / FM / SSB / CW / RTTY / PSK |
| Channels / memory management: |
99 regular with alpha tags (12 characters)
5 QMB (Expandable to 10)
9 scan edge pairs (PMS)
Non-volatile EEPROM storage
|
| Repeater shift / offset: | 10 m: 0-1 MHz in 10 KHz steps
6 m: 0-4 MHz in 10 KHz steps |

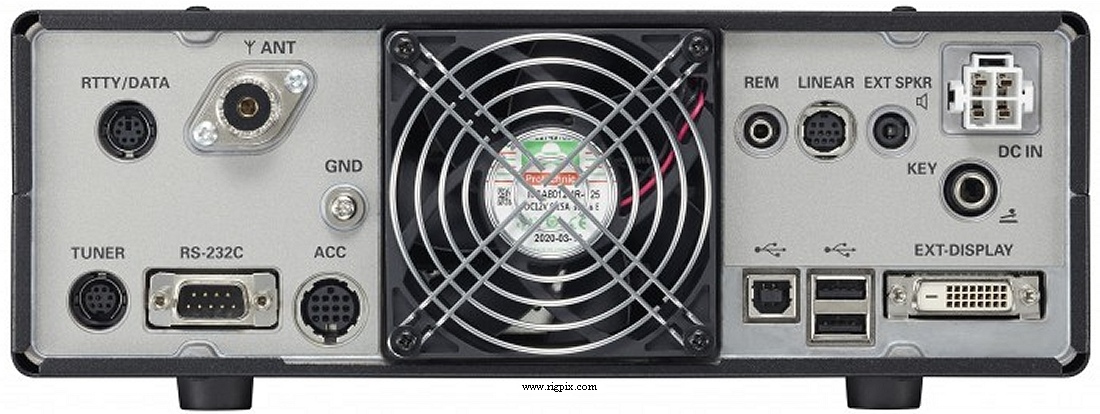

| Power supply: | 13.8 VDC ±15% (4-pin) |
| Current drain / power consumption: | RX: 3 A
TX: Max 23 A |
| Antenna impedance / connector: | 50 ohm / SO-239
(16.7-150 ohm HF and 25-100 ohm 6 m with ATU on) |
| Dimensions (W*H*D): | 266*91*263 mm (10.47*3.58*10.35") |
| Weight: | 5.9 Kg (13 lb) |
| Other features: |
Hybrid SDR. 5" color touch TFT. 12 KHz, 3 KHz and 500 Hz roofing filters.
RMDR more than 116 dB. 3rd IMDR better than 109 dB. 250 MHz HRDDS.
3D spectrum stream. Hi-speed ATU with 100 memories. SD card slot.
CAT control. RS-232C. USB A/B. DVI. CTCSS/PL.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 9.005 MHz
2nd IF: 24 KHz
|
| Sensitivity: |
AM (10 dB S/N, 6 KHz BW)
0.5-1.8 MHz: 7.9 uV
1.8-30 MHz: 2 uV
50-54 MHz: 1 uV
70.0-70.5 MHz: 2 uV
FM (15 dB SINAD, 12 KHz BW)
28-30 MHz: 0.25 uV
50-54 MHz: 1 uV
70.0-70.5 MHz: 0.25 uV
SSB/CW (10 dB S/N, 2.4 KHz BW)
1.8-30 MHz: 0.16 uV
50-54 MHz: 0.125 uV
70.0-70.5 MHz: 0.16 uV
|
| Selectivity: |
| Mode | -6 dB | -60 dB |
| AM | 6 KHz | 15 KHz |
| FM | 12 KHz | 25 KHz |
| SSB | 2.4 KHz | 3.6 KHz |
| CW | 500 Hz | 750 Hz |
|
| Image rejection: | 70 dB (HF)
60 dB (6 & 4 m) |
| AF output power / speaker: | 2.5 W at 10% distortion / 4 ohm |
| External speaker connector: | 3.5 mm, 4-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| HF | 6 m |
|---|
| AM: | 5-25 W | 5-25 W |
| FM: | 5-100 W | 5-100 W |
| SSB (PEP): | 5-100 W | 5-100 W |
| CW: | 5-100 W | 5-100 W |
|
| Modulation system: |
AM: Low-level (Early stage)
FM: Variable reactance
SSB: Balanced
|
| Max FM deviation (Factory set): | Normal: ±5 KHz
Narrow: ±2.5 KHz |
| Spurious emissions: | Better than -50 dB (HF)
Better than -63 dB (6 m)
Better than -60 dB (4 m) |
| Microphone impedance / connector: | 200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2020-202x |
| Additional info: | New price 2021 in Sweden: SEK 18995:- |
| Related documents: |
User manual (24.6 MB)
CAT manual (754 KB)
|
| Modifications and fixes: | |
| Reviews: | QST: June 2021, page 39 |
| Options / Accessories: |
ATAS-25
ATAS-120A
ATBK-100
FC-40
FH-2
M-1
M-70
M-90D
M-90MS
M-100
MHG-1
SCU-LAN10
SCU-28
SP-30
SSM-75E
XF-130CN
YH-77STA
|
Active tuning antenna. Manual type
Active tuning antenna. Automatic type
Antenna base kit for ATAS-120A
External automatic antenna tuner
Remote control keypad
Reference microphone
Desk microphone
Desk microphone
Microphone stand kit
Dual element microphone
Carrying handle
LAN unit
Linear amplifier connection cable (Mini-DIN 10p-to-open end)
External speaker
Hand microphone
300 Hz roofing filter
Lightweight headphones
|
|
