| GENERAL |
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 144-148 / 222-225 / 420-450 MHz
RX: 76-108 / 136-175 / 222-225 / 400-480 MHz
|
| Tuning steps: | 2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±? ppm |
| Mode: | TX: FM / NFM
WX: FM / NFM / WFM |
| Channels / memory management: |
999 regular with alpha tags
7 NOAA weather channels
Scanning
10 scan groups
Priority function
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC ("T"-connector on pigtail) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |

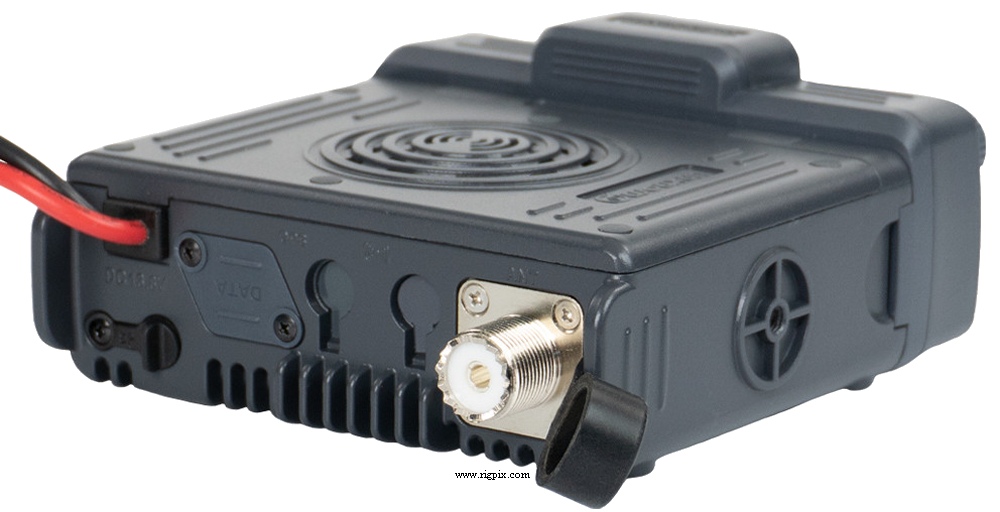

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 120*55*120 mm (4.72*2.16*4.72") |
| Weight: | 634 g (1.4 lb) |
| Other features: |
CTCSS/PL and DCS with tone scan. Backlit keypad. Voltmeter.
Scrambler. Voice prompt.Four display color themes and night mode.
DTMF. Weather alert. Crossband repeat. Roger beep. PC programmable.
Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
SoC / Homodyne
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | FM: 70 dB (Adjacent channel)
NFM: 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 20 W | 5 W |
| 1.25 m: | 10 W | 5 W |
| 70 cm: | 20 W | 5 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2025-202x |
| Additional info: |
New price, september 2025 in the US: $199.99
|
| Related documents: | User manual (2.5 MB) |
| Modifications and fixes: | Unlock expanded TX bands |
| Reviews: | |
| Options / Accessories: |
MBO-002
MMO-006
PCO-003
PWO-002
SSO-002
|
Mobile mounting bracket
Hand microphone with DTMF pad
USB programming cable
DC power cable
Mounting screw set
|
|
