| GENERAL |

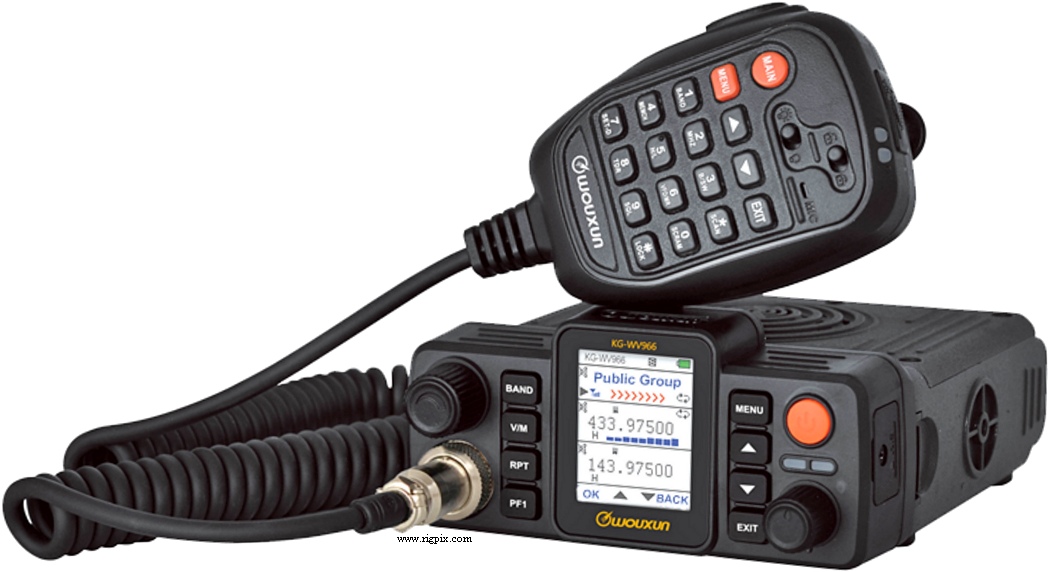

| Type: | Amateur VHF/UHF and PoC transceiver |
| Frequency range: |
TX: 136-174 / 400-470 MHz
RX: 76-108 / 136-174 / 400-470 MHz
PoC over 2G / 3G /4G cellular networks
|
| Tuning steps: | 5 / 6.25 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +40°C (-4 to +104°F) |
| Mode: | TX: FM / NFM / PoC
RX: FM / NFM / WFM / PoC |
| Channels / memory management: |
999 regular
Scanning
Priority function
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 118*47*120 mm (4.64*1.85*4.72") |
| Weight: | ? Kg (? lb) |
| Other features: |
DTMF encode/decode. VOX. Voice guide. Scrambler. Stopwatch.
SIM-card slot. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: |
2 m/ 70 cm: 0.25 uV (12 dB SINAD)
PoC: -106 dBm/1.12 uV (No BER reference)
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | FM: 70 dB (Adjacent channel)
NFM: 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 25 W | ? W |
| 70 cm: | 25 W | ? W |
| PoC: | 23-25 dBm | (200-320 mW) |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 20xx-20xx |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
