| GENERAL |

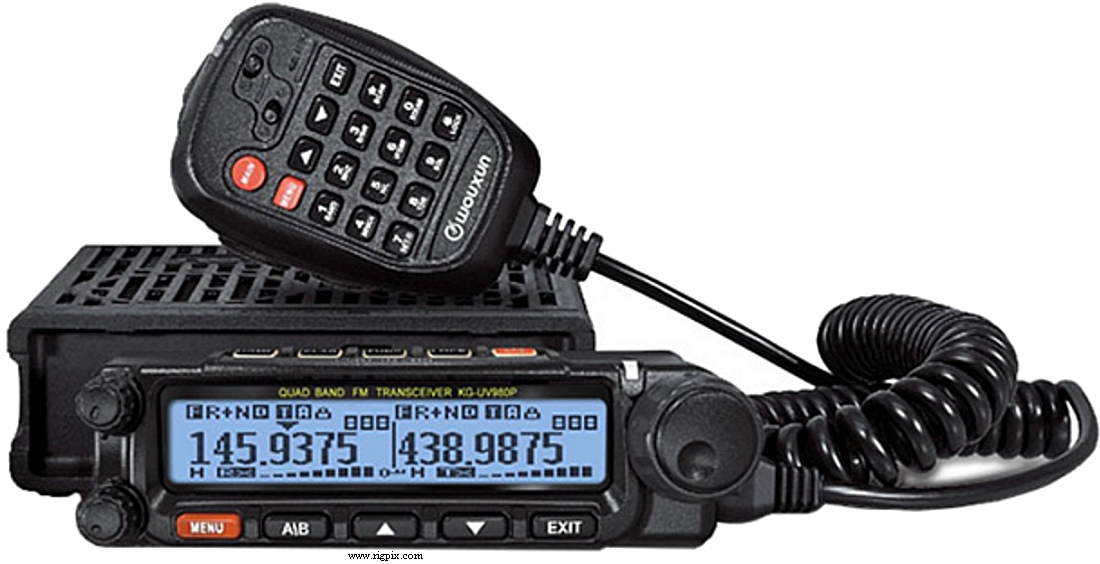

| Type: | Amateur HF/VHF/UHF transceiver |
| Frequency range: |
TX: 26-30 / 50-54 / 136-175 / 400-480 MHz
RX: 26-30 / 50-54 / 65-108 / 108-181 / 320-350 / 400-480 / 700-988 MHz
|
| Tuning steps: | 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±? ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | TX: FM / NFM
RX: AM / FM / NFM / WFM |
| Channels / memory management: |
999 regular
Scanning
Group scanning
Priority function
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 140*44*207 mm (5.51*1.73*8.15") |
| Weight: | 1.44 Kg (3.17 lb) |
| Other features: |
CTCSS/PL and DCS. Crossband repeater. Detachable front panel.
DTMF encode/decode. Scrambler. Voice guide. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | VHF/UHF: 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | FM: 70 dB (Adjacent channel)
NFM: 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 3 W at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low 3 | Low 2 | Low 1 |
|---|
| 10 m: | 50 W | 25 W | 10 W | 5 W |
| 6 m: | 50 W | 25 W | 10 W | 5 W |
| 2 m: | 50 W | 25 W | 10 W | 5 W |
| 70 cm: | 40 W | 25 W | 10 W | 5 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 201x-20xx |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
PCO-003
|
USB programming cable
|
|
