Signal Communication Corp. R-535 (Version 2)

A picture of Signal Communication Corp. R-535 (Version 2)

SPECIFICATIONS

GENERAL
Type:VHF/UHF receiver/scanner
Frequency range: 108-143 / 220-400 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM
Channels / memory management: 60 regular
Power supply:12 VDC
Current drain / power consumption:? mA

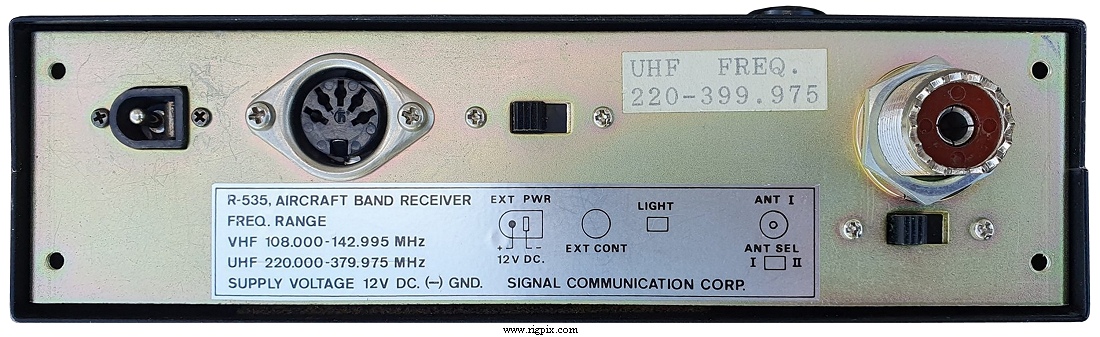

Antenna impedance / connector:50 ohm / One BNC + one SO-239
- / Telescopic whip on top
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Japan, 199x-199x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
