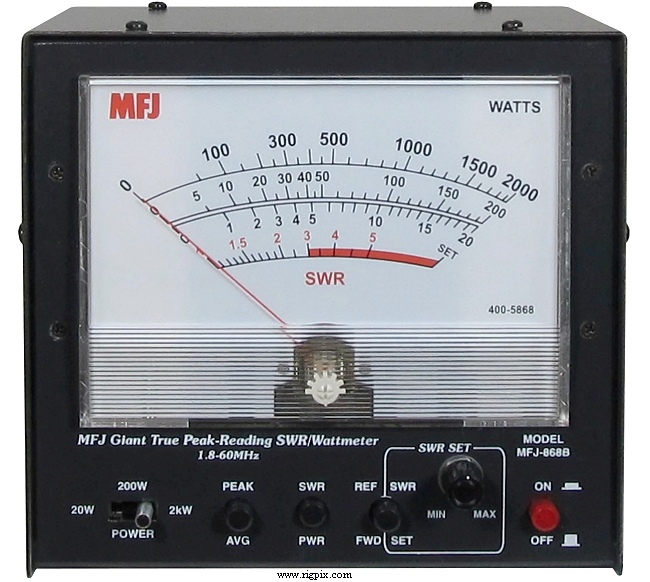

MFJ-868B
SPECIFICATIONS
| Type: | Giant SWR / Wattmeter |
| Frequency range: | 1.8-60 MHz |
| Power measure ranges: | 20 W
200 W
2 KW |
| Insertion loss: | |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Power supply: | 9 VDC (One 6LR61 / 1604 / E battery)
or 12 VDC external (Male barrel jack, center positive) which also power the meter lamps |
| Current drain / power consumption: | ? mA |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? lb) |
| Manufactured: | 2013-20xx (Discontinued) |
| Additional info: |
Peak or average reading.
|
| Related documents: |
User manual (363 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
