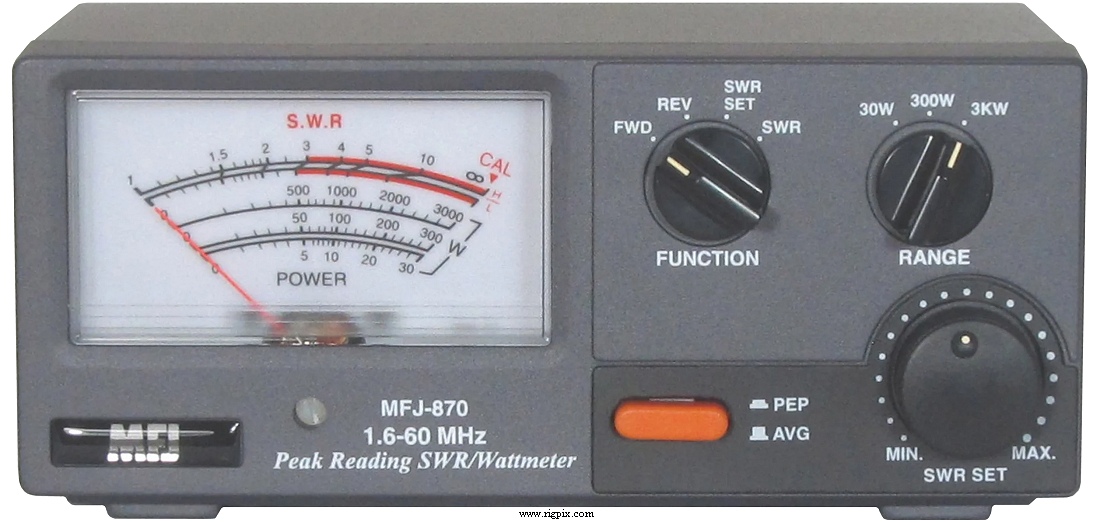

MFJ-870
SPECIFICATIONS
| Type: | SWR / Wattmeter |
| Frequency range: | 1.6-60 MHz |
| Power measure ranges: | 30 W
300 W
3 KW |
| Insertion loss: | |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Power supply: | 13.8 VDC (Backlight) |
| Current drain / power consumption: | ? mA |
| Dimensions (W*H*D): | 190*108*76 mm (7.5*4.25*3") |
| Weight: | 767 g (1.69 lb) |
| Manufactured: | 20xx-20xx (Discontinued) |
| Additional info: |
PEP or average reading.
Accuracy: ±10% (Average)
Minimum power for accurate SWR measurement is 3 W
|
| Related documents: |
User manual (28 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
