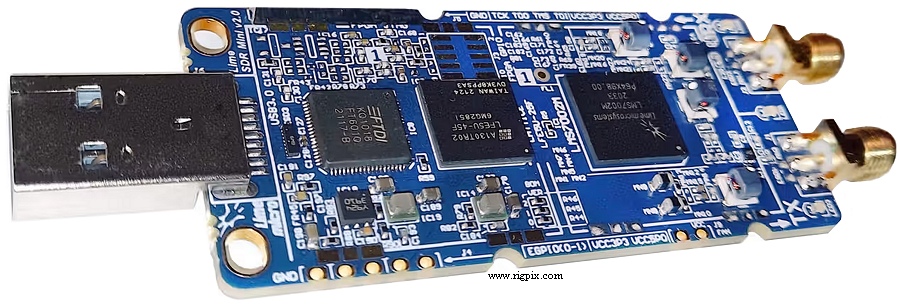

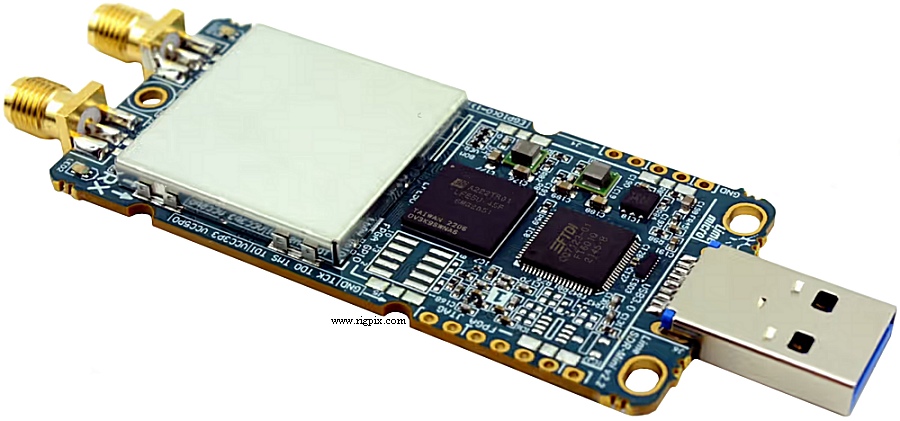

LimeSDR Mini 2 (By Lime Microsystems)
SPECIFICATIONS
| GENERAL |
| Type: | SDR RF development board |
| Frequency range: | 10-3500 MHz |
| Frequency stability: | ±1 to 4 ppm |
| RF bandwidth: | 40 MHz |
| Power supply: | 5 VDC, supplied via USB |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50 ohm / Two SMA jacks |
| Dimensions (W*H*D): | 69*31 mm (2.72*1.22") |
| Weight: | ? g (? oz) |
| Other features: | |
|
|
|
|
| HARDWARE SECTION |
| Chipset: | LMS7002M |
| Sample rate: | 30.72 MSPS |
| Sample depth: | 12 bit |
| TX channels: | 1 |
| Max TX power: | 10 mW (10 dBm) |
| RX channels: | 1 |
| Oscillator precision: | ±1 to 4 ppm |
| Duplex: | Full |
| Interface: | USB 3.0 |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2022-202x |
| Additional info: |
New price, january 2026 in Europe: €432.00
New price, january 2026 in the US: $502.00
|
| Related documents: |
v2.2 Tech info (2.1 MB)
v2.3 Tech info (1.7 MB)
v2.4 Tech info (1.7 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
