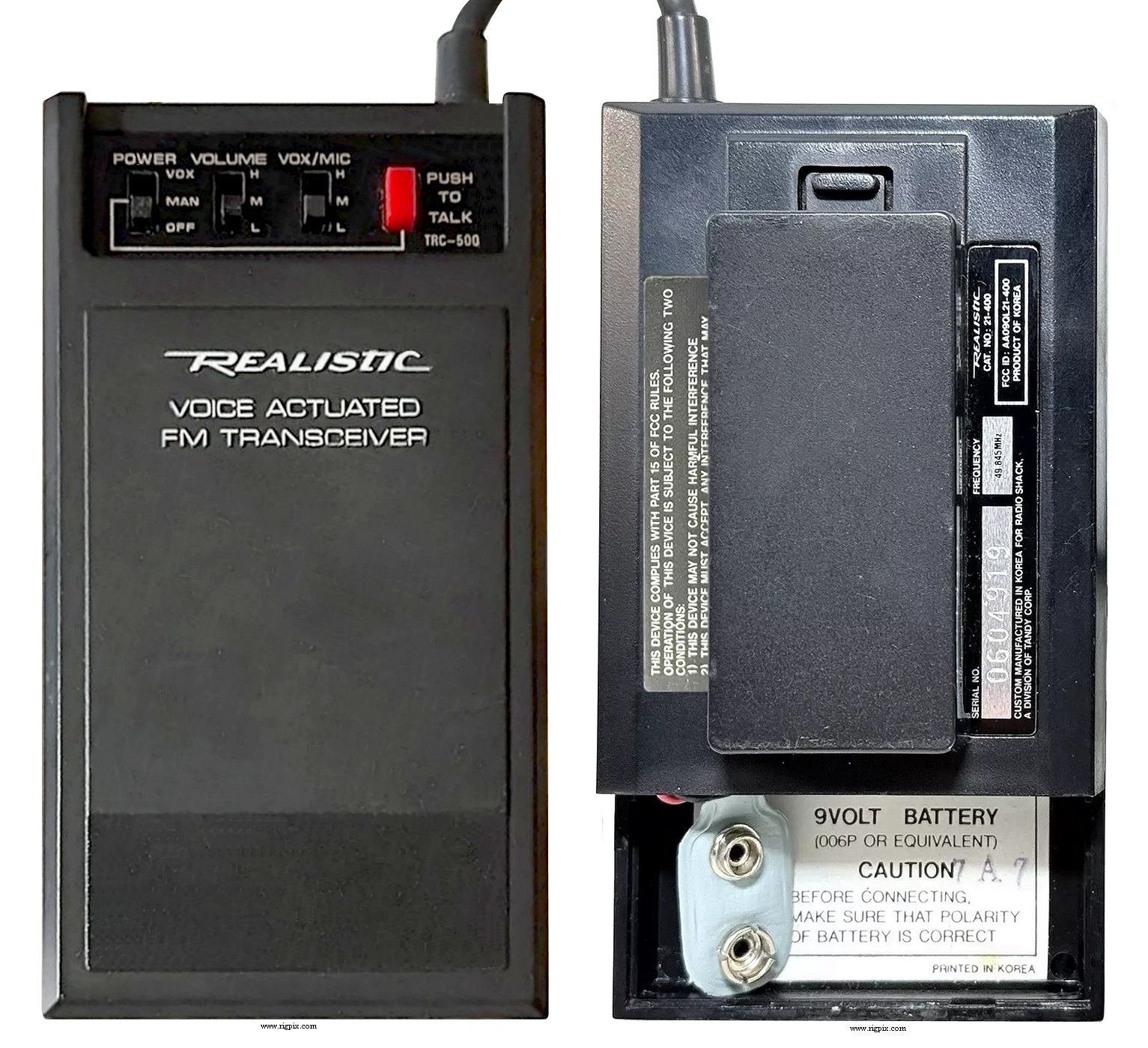

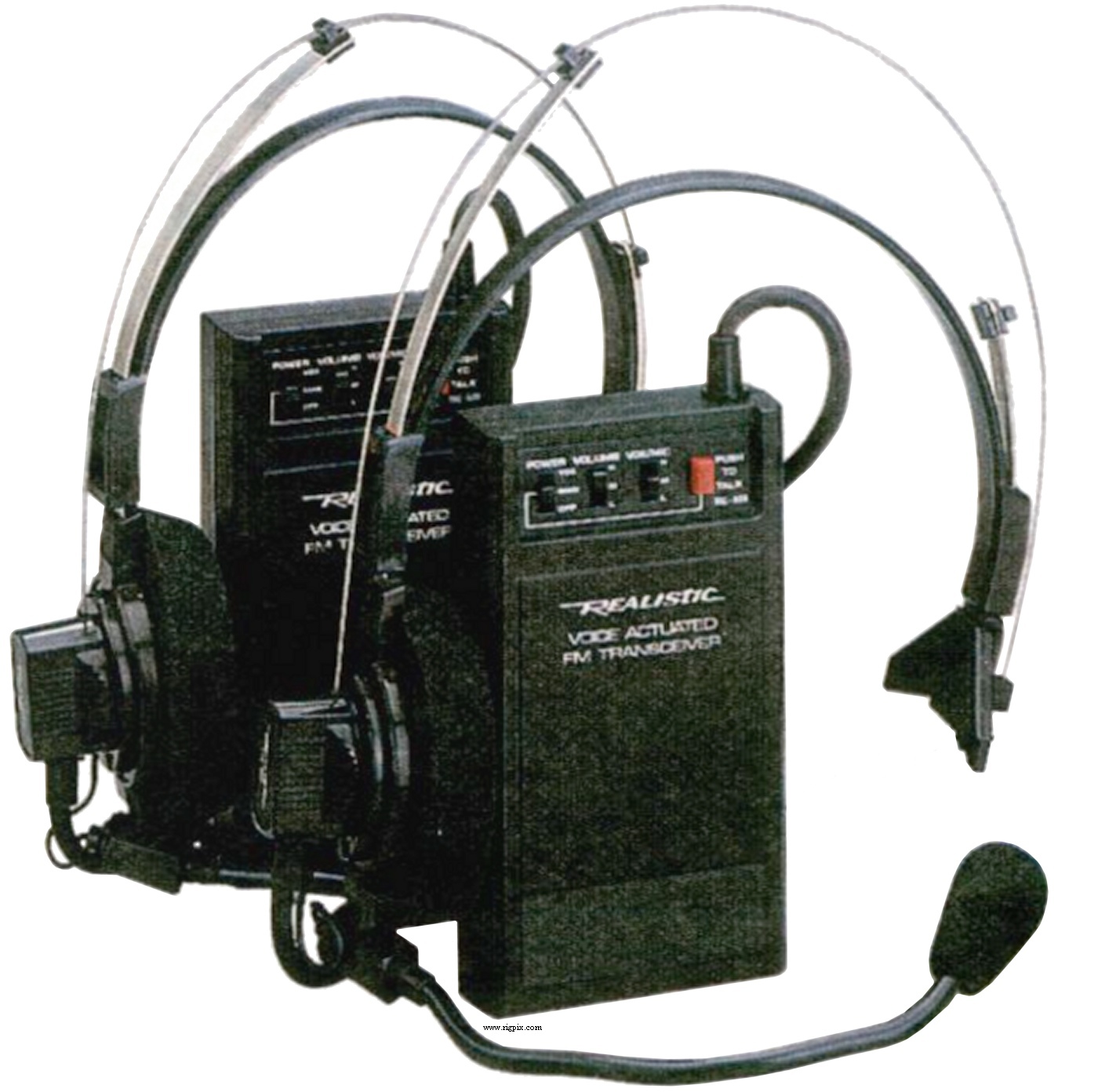

| GENERAL |
| Type: | License-free "49 MHz USA" transceiver |
| Frequency range: | 49.830-49.890 MHz |
| Channels / tuning steps: | 1 regular (XTAL controlled) |
| Frequency stability: | ±2 KHz @ 0 to 40°C (32-104°F) |
| Mode: | FM |
| Memory channels / management: | - |
| Repeater shift / offset: | Simplex only |
| Power supply: | 9 VDC (One PP3 / E / 6LR61 battery) |
| Current drain / power consumption: | RX: 13.5-40 mA
TX: Max 40 mA |
| Antenna impedance / connector: | ? ohm / Built-into the headset |
| Dimensions (W*H*D): | 64*116*24 mm (2.52*4.57*0.94") |
| Weight: | 255 g (9 oz) |
| Other features: | VOX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (20 dB quieting) |
| Squelch sensitivity: | 0.5 uV (Threshold) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / Headset only, fixed cord |
| External speaker connector: | - |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | Max 10 mW (10000 uV/m @ 3 meters) |
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -20 dB |
| Microphone impedance / connector: | ? ohm / Headset only, fixed cord |
| Microphone input level: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Korea, 1983-198x (Discontinued) |
| Additional info: |
FCC ID: AAO9QL21-400.
New price 1984 in the US: $89.95 (Pair).
New price 1985 in the US: $89.95 (Pair).
New price 1986 in the US: $79.95 (Pair).
New price 1987 in the US: $69.95 (Pair).
New price 1988 in the US: $69.95 (Pair).
New price 1989 in the US: $69.95 (Pair).
New price 1990 in the US: $69.95 (Pair).
New price 1991 in the US: $69.95 (Pair).
New price 1992 in the US: $69.95 (Pair).
|
| Related documents: |
User manual and schematic diagram (323 KB)
AF amplifier: LM386
FM-IF: MC3357
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
