| GENERAL |

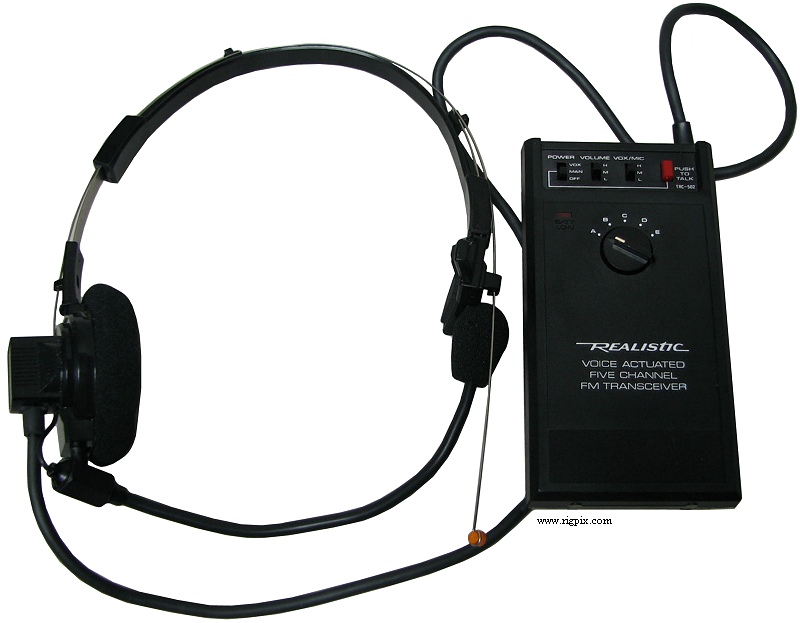

| Type: | License-free "49 MHz USA" transceiver |
| Frequency range: | 49.830-49.890 MHz |
| Channels / tuning steps: |
Ch A: 49.830 MHz
Ch B: 49.845 MHz
Ch C: 49.860 MHz
Ch D: 49.875 MHz
Ch E: 49.890 MHz
|
| Frequency stability: | ? ppm |
| Mode: | FM |
| Memory channels / management: | - |
| Repeater shift / offset: | Simplex only |
| Power supply: | 9 VDC |
| Current drain / power consumption: | RX: 30-60 mA
TX: Max 50 mA |
| Antenna impedance / connector: | 50 ohm / Fixed antenna |
| Dimensions (W*H*D): | 74*139*24 mm (2.91*5.5*0.94") |
| Weight: | 240 g (8.47 oz) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | 0.5 uV (20 dB quieting) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | Max 10 mW |
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ? |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 19xx-19xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
