| GENERAL |

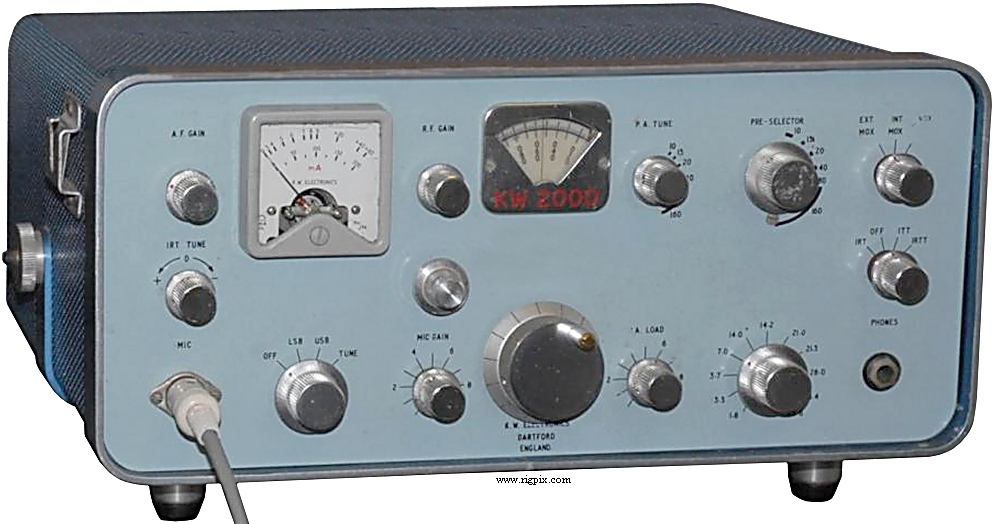

| Type: | Amateur HF transceiver |
| Frequency range: | 10-160 m in 11 ranges |
| Tuning steps: | Analog / continuous |
| Frequency stability: | ±? ppm |
| Mode: | SSB / CW |
| Channels / memory management: | None |
| Repeater shift / offset: | No |
| Power supply: | Various (Separate PSU) |
| Current drain / power consumption: | RX: ? W
TX: ? W |
| Antenna impedance / connector: | 50 ohm nominal / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Max Pwr |
|---|
| SSB (PEP): | ~50 W (100 W input) |
| CW: | ~50 W (100 W input) |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | England, 1963-1964 (Discontinued) |
| Additional info: |
New price 1963 in Sweden: SEK 3185:- (Excl VAT)
|
| Related documents: |
RF final: 6146
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
