K.W. Electronics - KW 2000A

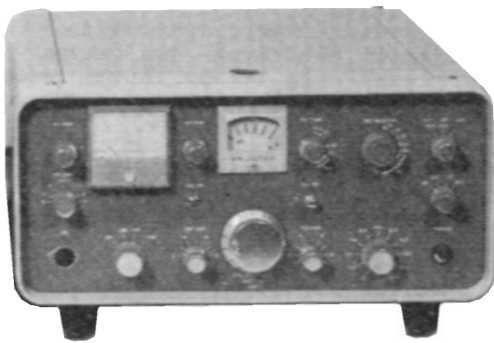

A picture of K.W. Electronics - KW 2000A

SPECIFICATIONS

GENERAL
Type:Amateur HF transceiver
Frequency range:10-160 m
Tuning steps:Analog / continuous
Frequency stability:±? ppm
Mode:SSB / CW
Channels / memory management:None
Repeater shift / offset:No
Power supply:Various (Separate PSU)
Current drain / power consumption:RX: ? W
TX: ? W
Antenna impedance / connector:50 ohm nominal / SO-239
Dimensions (W*H*D):355*160*336 mm (13.98*6.3*13.23")
Weight:? Kg (? lb)
Other features:VOX. Calibrator.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:

Max Pwr
SSB (PEP):~100 W (180 W input)
CW:~100 W (150 W input)
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:England, 1964-1968 (Discontinued)
Additional info: New price 1965 in Sweden: SEK 3870:- (Excl VAT)
New price, january 1968 in England: £220.00
Related documents: RF finals: Two 6146
Modifications and fixes:
Reviews:
Options / Accessories:
- -
An inside picture of K.W. Electronics - KW 2000A
A rear picture of K.W. Electronics - KW 2000A
