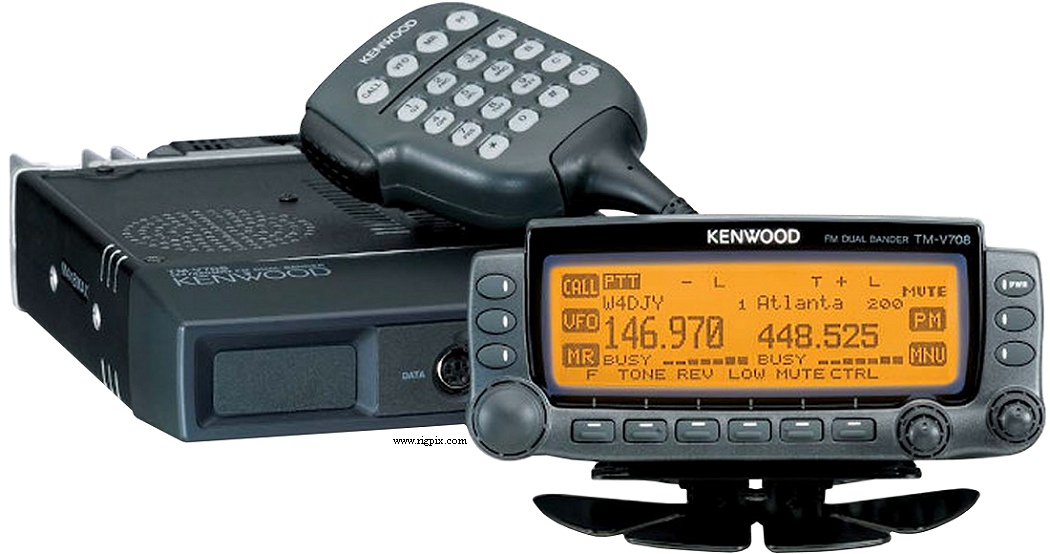

| GENERAL |
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
USA
TX: 144-148 / 438-450 MHz
RX: 118-524 / 800-1300 MHz (Cellular blocked)
|
| Tuning steps: | 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability: | ±3 ppm @ -10 to +50°C (14 to 122°F) |
| Mode: | TX: FM
RX: AM / FM |
| Channels / memory management: |
200 regular with alpha tags (8 characters)
2 call (1 per band)
5 PM channels
10 DTMF memories (Up to 16 digits each)
Non volatile EEPROM storage
|
| Repeater shift / offset: | ±0 to 29.95 MHz (in 50 KHz steps) |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: Max 1 A
TX: 4 to 11.5 A |
| Antenna impedance / connector: | 50 ohm / N-jack |
| Dimensions (W*H*D): | Main unit: 140*40*195 mm (5.51*1.57*7.68")
Front panel: 140*60*34 mm (5.51*2.36*1.4") |
| Weight: | Main unit: 1.2 Kg (2.65 lb)
Front panel: 180 g (6.35 oz) |
| Other features: |
CTCSS/PL and DTSS. Tone scan. Connector for external TNC.
Visual scan. Crossband repeater. Dimmer. AIP. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 38.85 MHz (VHF) - 45.05 MHz (UHF)
2nd IF: 450 KHz (VHF) - 455 KHz (UHF)
|
| Sensitivity: | Main: 0.16 uV (12 dB SINAD)
Sub: 0.25 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB)
28 KHz (-40 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 50 W | 10 W | 5 W |
| 70 cm: | 35 W | 10 W | 5 W |
|
| Modulation system: | Reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin modular |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2002-200x (Discontinued) |
| Additional info: |
This transceiver is similar to TM-D700A but
without the built-in TNC and APRS functionality.
|
| Related documents: | User manual (3.2 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
MC-45
MC-58DM
MC-80
MJ-88
PG-2N
PG-3B
PG-4X
PG-5A
PS-33
SP-50B
VS-3
|
Multi-function hand microphone
Hand microphone with DTMF pad
Desk microphone (MJ-88 required)
Microphone plug adapter
DC power cable
DC line noise filter
Extension cable kit
Data cable
Regulated DC power supply
Communications speaker
Voice synthesizer unit
|
|
