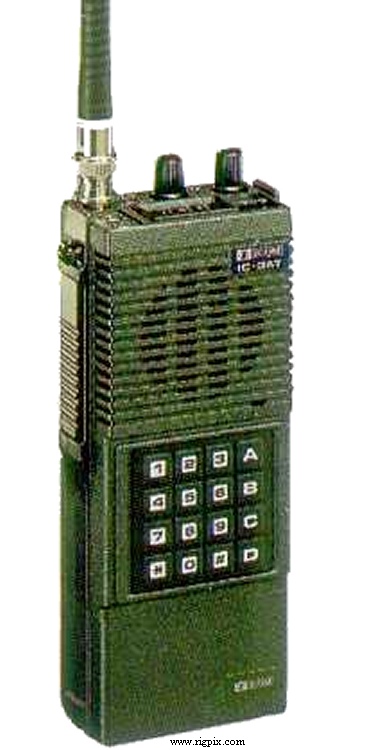

| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
USA
TX: 220-225 MHz
RX: 220-225 MHz
|
| Tuning steps: | 10 / 100 KHz, 1 MHz (Thumbwheels) |
| Frequency stability: | ±1.5 KHz @ -10 to +60°C (14 to 140°F) |
| Mode: | FM |
| Channels / memory management: | None |
| Repeater shift / offset: | -1.6 MHz |
| Power supply: | 6-10.8 VDC (Depending on battery pack) |
| Current drain / power consumption: | RX: 20-130 mA
TX: Max 550 mA @ 1.5 W output power |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 65*117*35 mm (2.56*4.61*1.38"), without battery pack |
| Weight: | 490 g (1.08), with BP-3 and antenna |
| Other features: | DTMF keypad. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 16.9 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (20 dB quieting) |
| Squelch sensitivity: | Less than 0.4 uV (Threshold) |
| Noise figure: | |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 300 mW at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High
@10.8V | High
@8.4V | Low |
|---|
| 1.25 m: | 2.3 W | 1.5 W | 150 mW |
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / TS "Subminijack" (2.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 19xx-198x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (2.9 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BC-25U
BC-30
BP-2 (IC-BP2)
BP-3 (IC-BP3)
BP-4 (IC-BP4)
BP-5 (IC-BP5)
CP-1 (IC-CP1)
HM-9 (IC-HM9)
|
Wall charger
Desktop rapid charger
NiCd battery pack. 7.2 V, 400 mAh
NiCd battery pack. 8.4 V, 250-270 mAh
Battery case for six R6 / AA alkaline or NiCd cells
NiCd battery pack. 10.8 V, 400 mAh
Cigarette lighter charger for BP-3
Speaker-microphone
|
|
