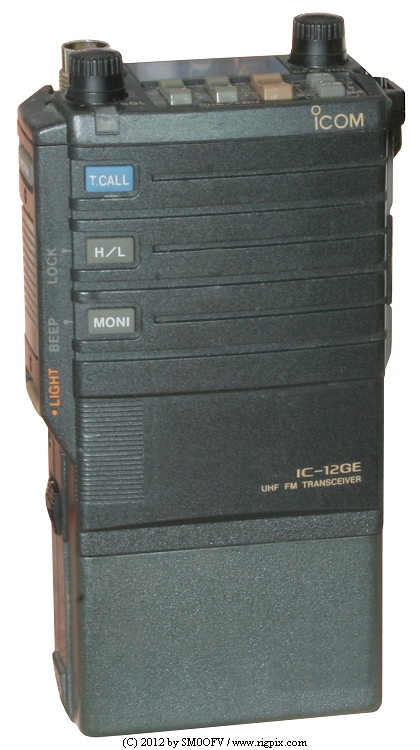

| GENERAL |
| Type: | Amateur UHF transceiver |
| Frequency range: |
Europe
TX: 1240-1300 MHz
RX: 1240-1300 MHz
|
| Tuning steps: | 12.5 / 25 KHz (10 / 20 KHz possible after CPU reset) |
| Frequency stability: | ±3 ppm @ 0° to 50°C (32° to 122°F) |
| Mode: | FM |
| Channels / memory management: |
20 regular
2 scan edge
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±? |
| Power supply: | 7.2, 8.4, 10.8 or 13.2 VDC (depending on battery pack)
or 5.5-16 VDC external |
| Current drain / power consumption: | RX: 24-250 mA
TX: 400-900 mA |
| Antenna impedance / connector: | 50 ohm / TNC |
| Dimensions (W*H*D): | 65*130*35 mm (2.56*5.12*1.38") |
| Weight: | 470 g (16.58 oz) |
| Other features: | RIT/VXO. 1750 Hz tone burst. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 72.2 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 400 mW at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High
@ 8.4 V | Low |
|---|
| 23 cm: | 1 W | 100 mW |
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -40 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1988-19xx (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (1.5 MB)
Service manual (1.9 MB)
|
| Modifications: | |
| Reviews: | |
| Options / Accessories: |
BC-26E
BP-2
BP-3
BP-4
BP-5
BP-5A
BP-7
BP-8
BP-70
|
Wall charger
NiCd battery pack. 7.2 V, 450 mAh
NiCd battery pack. 8.4 V, 270 mAh
Battery case. For six LR6 / AA dry cells or NiCd's
NiCd battery pack. 10.8 V, 450 mAh
NiCd battery pack. 10.8 V, 450 mAh
NiCd battery pack. 13.2 V, 450 mAh
NiCd battery pack. 8.4 V, 800 mAh
NiCd battery pack. 13.2 V, 270 mAh
|
|
