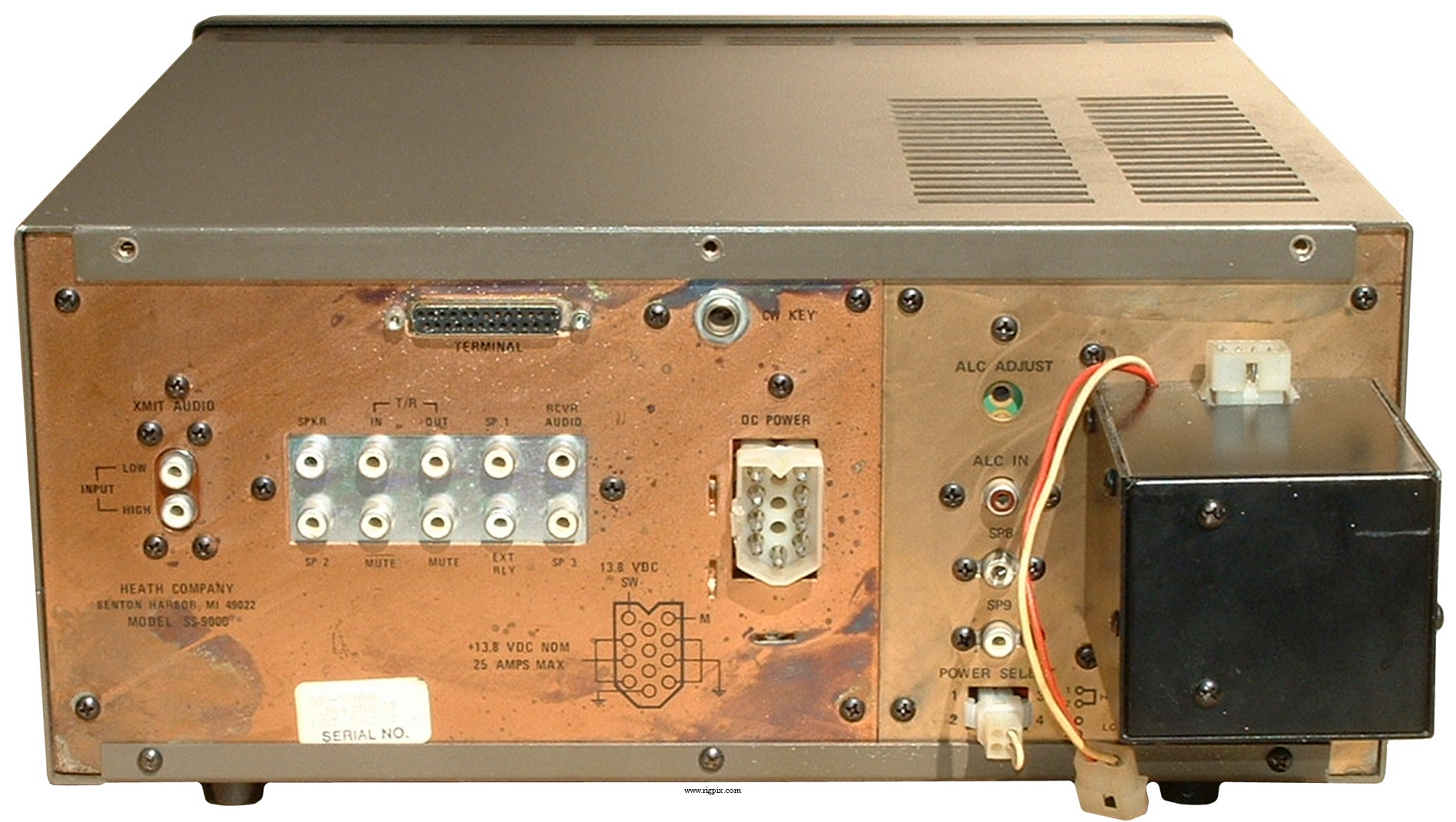

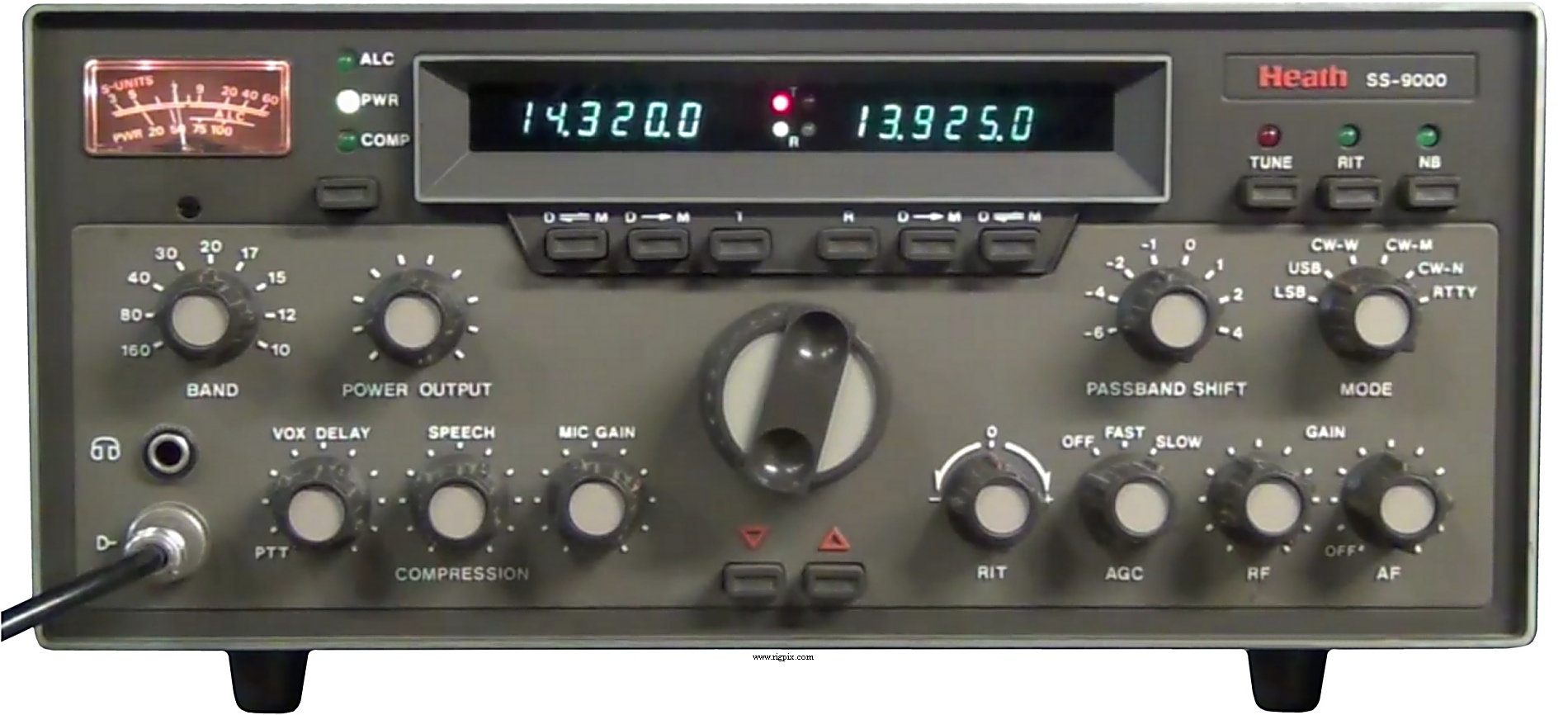

| GENERAL |
| Type: | Amateur HF transceiver |
| Frequency range: |
10-160 m + WARC in nine bands
160 m: 1.8-2.0 MHz
80 m: 3.5-4.0 MHz
40 m: 7.0-7.3 MHz
30 m: 10.1-10.15 MHz
20 m: 14.0-14.350 MHz
17 m: 18.068-18.168 MHz
15 m: 21.0-21.450 MHz
12 m: 24.890-24.990 MHz
10 m: 28.0-29.7 MHz
+ WWV @ 15.0 MHz
|
| Tuning steps: | 100 Hz |
| Frequency stability: |
Less than 3 ppm from power on for first 15 minutes
Less than 3 ppm per hour after 15 minutes warmup
|
| Mode: | SSB / CW / RTTY |
| Channels / memory management: |
27 regular (3 per band)
RAM storage with three LR6 / AA backup batteries
|
| Repeater shift / offset: | No |
| Power supply: | 11-16 VDC |
| Current drain / power consumption: | RX: ~2 A
TX: Max 25 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 356*156*349 mm (14*6.14*13.74") |
| Weight: | 15.9 Kg (35 lb) |
| Other features: | VOX. Dual VFO's. IF shift. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ~9 MHz
2nd IF: 3.395 MHz
|
| Sensitivity: |
SSB (10-40 m): 0.3 uV (10 dB S+N/N)
SSB (80-160 m): 0.5 uV (10 dB S+N/N)
|
| Selectivity: |
SSB
2.1 KHz (-6 dB)
5 KHz (-60 dB)
CW(M)
400 Hz (-6 dB)
1.5 KHz (-60 dB)
CW(N)
200 Hz (-6 dB)
1 KHz (-60 dB)
|
| Image rejection: | 65-80 dB (Depending on band) |
| AF output power / speaker: | 1.5 W at 10% distortion / 4 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Max Pwr |
|---|
| SSB (PEP): | 100 W |
| CW: | 100 W |
| RTTY: | 100 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | Hi-Z / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1982-1984 (Discontinued) |
| Additional info: |
New price 1982 in the US: $2795.00 (Assembled and tested
Rare! Only about 375 units were produced.
|
| Related documents: |
User manual (19.2 MB)
Schematics (3.1 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
