| GENERAL |

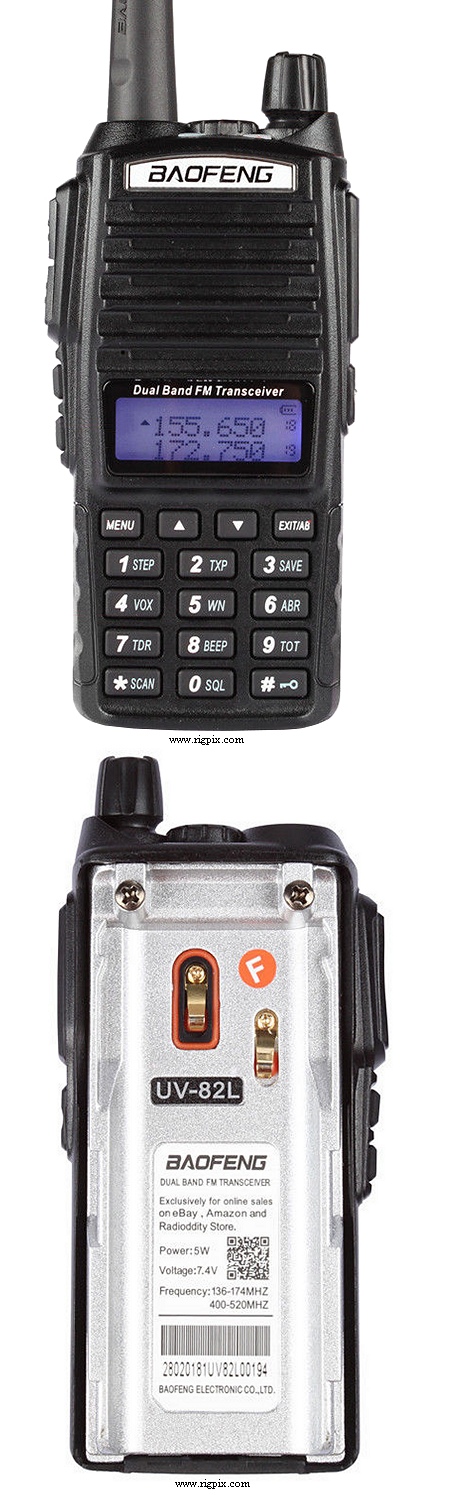

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 136-174 / 400-520 MHz
RX: 65-108 / 136-174 / 400-520 MHz
|
| Tuning steps: | 2.5 / 5 / 6.25 / 10 / 12.5 / 25 KHz |
| Frequency stability: | ? ppm |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: | 128 regular |
| Repeater shift / offset: | Freely programmable |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max 1.6 A |
| Antenna impedance / connector: | 50 ohm / SMA-male |
| Dimensions (W*H*D): | 60*130*35 mm (2.36*5.12*1.38") |
| Weight: | 238 g (8.4 oz), with battery and antenna |
| Other features: | CTCSS/PL and DCS. VOX. LED flashlight. Tri-color backlite. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: | ? |
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 5 W | 1 W |
| 70 cm: | 5 W | 1 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2013-201x |
| Additional info: |
This is actually the same radio as the non-L version, but
with a higher capacity battery.
New price 2019: $31.32
|
| Related documents: |
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
