| GENERAL |

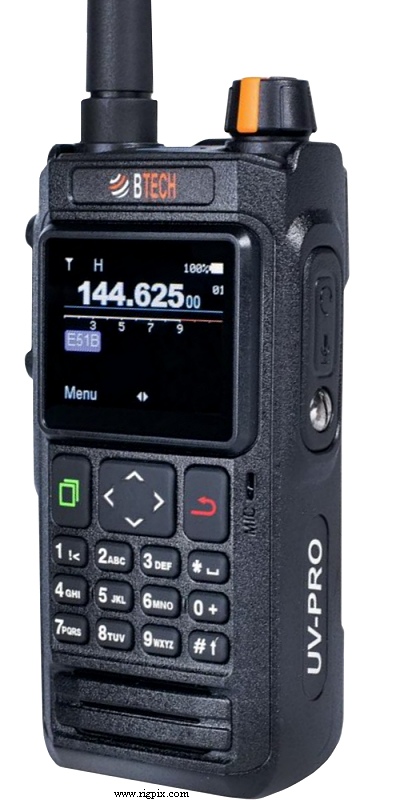

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 2 m / 70 cm (136-174 / 400-520 MHz)
RX: 88-108 / 108-136 / 136-174 / 400-520 MHz
|
| Tuning steps: | 2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±2.5 ppm @-20 to +60°C (-4 to +140°F) |
| Mode: | TX: FM / NFM
RX: AM / FM / NFM / WFM |
| Channels / memory management: |
180 regular in 6 banks
10 NOAA weather channels
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.4 VDC (2600 mAh Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 60*130*40 mm (2.36*5.12*1.57") |
| Weight: | 312 g (11 oz) |
| Other features: |
CTCSS/PL and DCS with tone scan. APRS. Text messaging. Bluetooth.
GPS. "Parrot" audio relay. USB-C rechargeable battery. Weather alert.
Compass. Dual watch. Smartphone app. Frequency sync rapid scanning.
IP67 dust and water proof.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 68 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 3% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 5 W | 3 W | 1 W |
| 70 cm: | 5 W | 3 W | 1 W |
NB! Conflicting info. The BTech website states the above output
power, while the manual says 7, 5 and 2 W respectively.
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2022-202x |
| Additional info: |
New price, october 2024 in the US:$164.90 (USD)
|
| Related documents: | User manual (1.6 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BS-22
BS-PTT
|
Bluetooth speaker-microphone
Bluetooth PTT button
|
|
