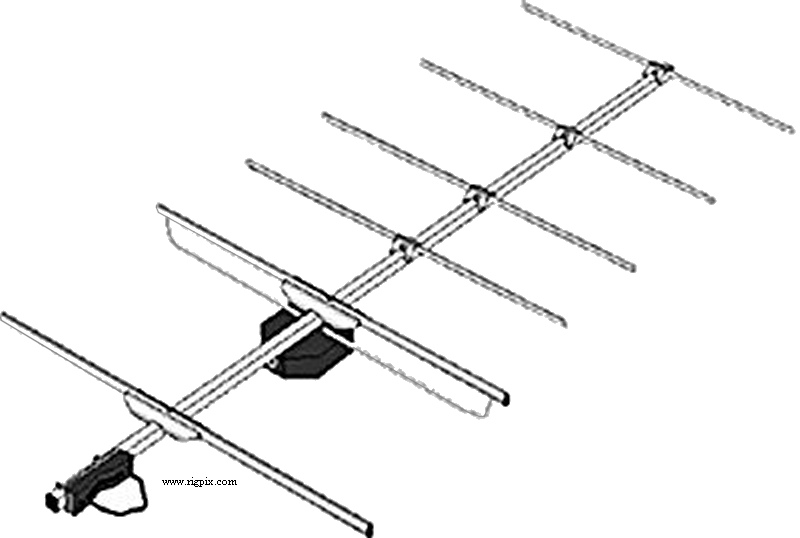

Vårgårda 6EL70
SPECIFICATIONS
| Type: | Amateur UHF yagi, 6 elements |
| Frequency range / band(s): | 432-438 MHz (70 cm) |
| Bandwidth @ SWR: | |
| Gain: | 10 dBd, f/b 20 dB |
| Beamwidth (-3 dB): | E-plane: 44°
H-plane: 60° |
| G/T @ 30° elevation: | ? dB |
| Max power: | 1 KW (PEP) |
| Impedance / connector: | 50 ohm / ? |
| Wind area: | 0.041 m² (0.44 ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | ? m (? ft) |
| Dimensions: | Boom length: 1 m (3.28 ft) = 1.45 wl
Longest element: ? cm (?") |
| Weight: | 700 g (1.54 lb) |
| Mast mount diameter: | ?-? mm (?-?") |
| Manufactured: | Sweden, 1975-20xx |
| Additional info: |
New price 2016 in Sweden: SEK 1964:-.
|
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
|
