Antron A-99

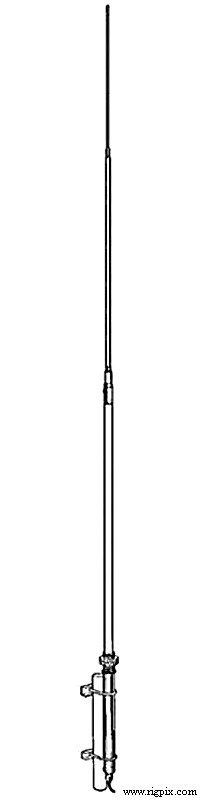

A picture of Antron A-99

SPECIFICATIONS

Type:HF vertical base antenna
Frequency range / band(s):25-31 MHz (By cut-and-tune)
Bandwidth:
Gain:0 dBd
Beamwidth (-3 dB):Omni
G/T @ 30° elevation:-
Max power:1 KW (RMS)
2 KW (PEP)
Impedance / connector:50 ohm / SO-239
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:-
Dimensions:Length: 5.3 m (17.39 ft)
Weight:2.3 Kg (5.07 lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:USA, 197x-198x (Discontinued)
Additional info: This antenna is now manufactured and marketed as Solarcon A-99.
Related documents:
Reviews:
Options / Accessories:
- -
A schematic diagram of Antron A-99
