Lafayette Mobil 10

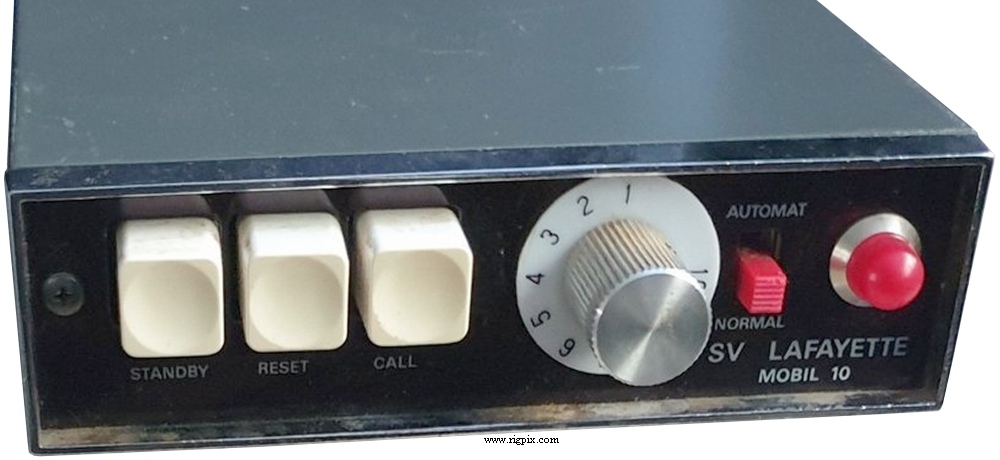

A picture of Lafayette Mobil 10

SPECIFICATIONS

Type:Dual tone selcall unit
Power supply:12 VDC
Current drain / power consumption:? mA
Dimensions (W*H*D):100*35*144 mm (3.94*1.38*5.67")
Weight:1 Kg (2.2 lb)
Manufactured:196x-1977 (Discontinued)
Other: Selector for 10 different combinations of tones.
Could be equipped with any two different tuning fork filters
for either 817.5 Hz, 847.5 Hz, 862.5 Hz, 892.5 Hz, 907.5 Hz,
922.5 Hz, 937.5 Hz, 952.5 Hz, 967.5 Hz or 997.5 Hz.
This unit was mainly produced for the swedish market.

New price 1969 in Sweden: SEK 385:-
New price 1972 in Sweden: SEK 467:-
New price 1976 in Sweden: SEK 490:-
New price 1978 in Sweden: SEK 562:-
Related documents:
Modifications and fixes:
Reviews:
Applicable radios: HB-23
HB-525
HB-555
HB-600
HB-625
HE-20T
And possibly other similar transceivers...
