Hy-Gain II (2702)

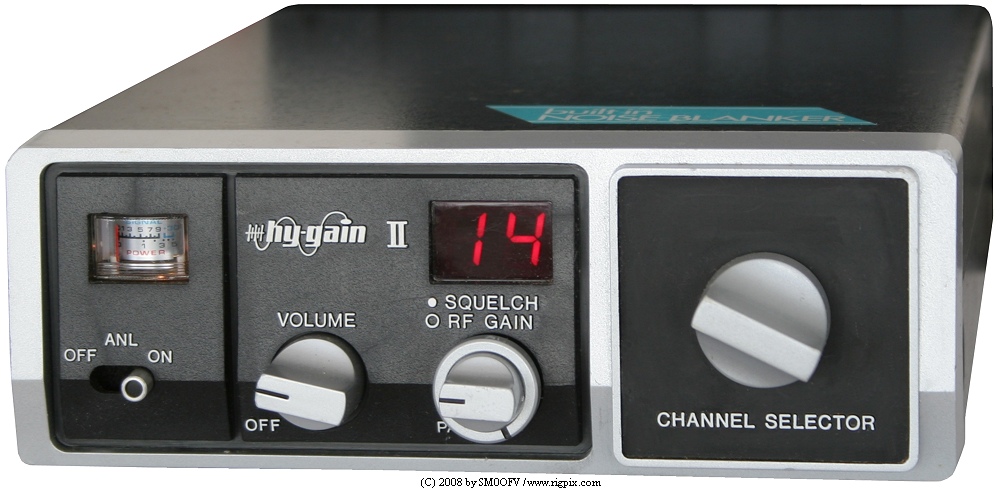

A picture of Hy-Gain II (2702)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.405 MHz (USA)
26.965-27.225 MHz (Sweden)
Channels / tuning steps:40 (USA)
23 (1-22 + 11A) (Sweden)
Mode:AM
Frequency control:PLL (PLL02A)
Frequency stability:? ppm
Clarifier or Delta tune:No
Power supply:11.5-14.5 VDC (3-pin connector)
Current drain / power consumption:RX: 200 mA (Squelched)
TX: Max 1.1 A
Antenna impedance/connector:50 ohm / SO-239
Dimensions (W*H*D):162*56*209 mm (6.4*2.2*8.2")
Weight:1.5 Kg (3.3 lb)
Other features:PA. ANL.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: Murata CFU455H3
Sensitivity:0.7 uV (10 dB S+N/N)
Selectivity:
Image rejection:
AF output power / speaker:3 W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:USA: 4 W
Sweden: ~3.5 W (5 W input)
Modulation system:
Max FM deviation:No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 5-pin DIN (180°)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 1977-197x (Discontinued)
Main PCB: USA
PTBM051AOX by Cybernet Electronics Corporation
Sweden
PTBM036AOX by Cybernet Electronics Corporation
Sub PCBs: USA
PTLD017AOX - LED display board
PTSW023AOX - Channel selector board
Sweden
PTLD?????? - LED display board
PTSW075AOX - Channel selector board
Additional info: The swedish version still had a 40 channel selector but was modified
with an extra board that disabled all channels above 22 and used the
ch 23 position as 11A. A weird solution, but it was required to comply
with swedish law at the time.
New price 1979 in Sweden: SEK 1095:-
Related documents: Service manual (12.7 MB)
PLL: PLL02A
RF final: 2SC1306 or equivalent

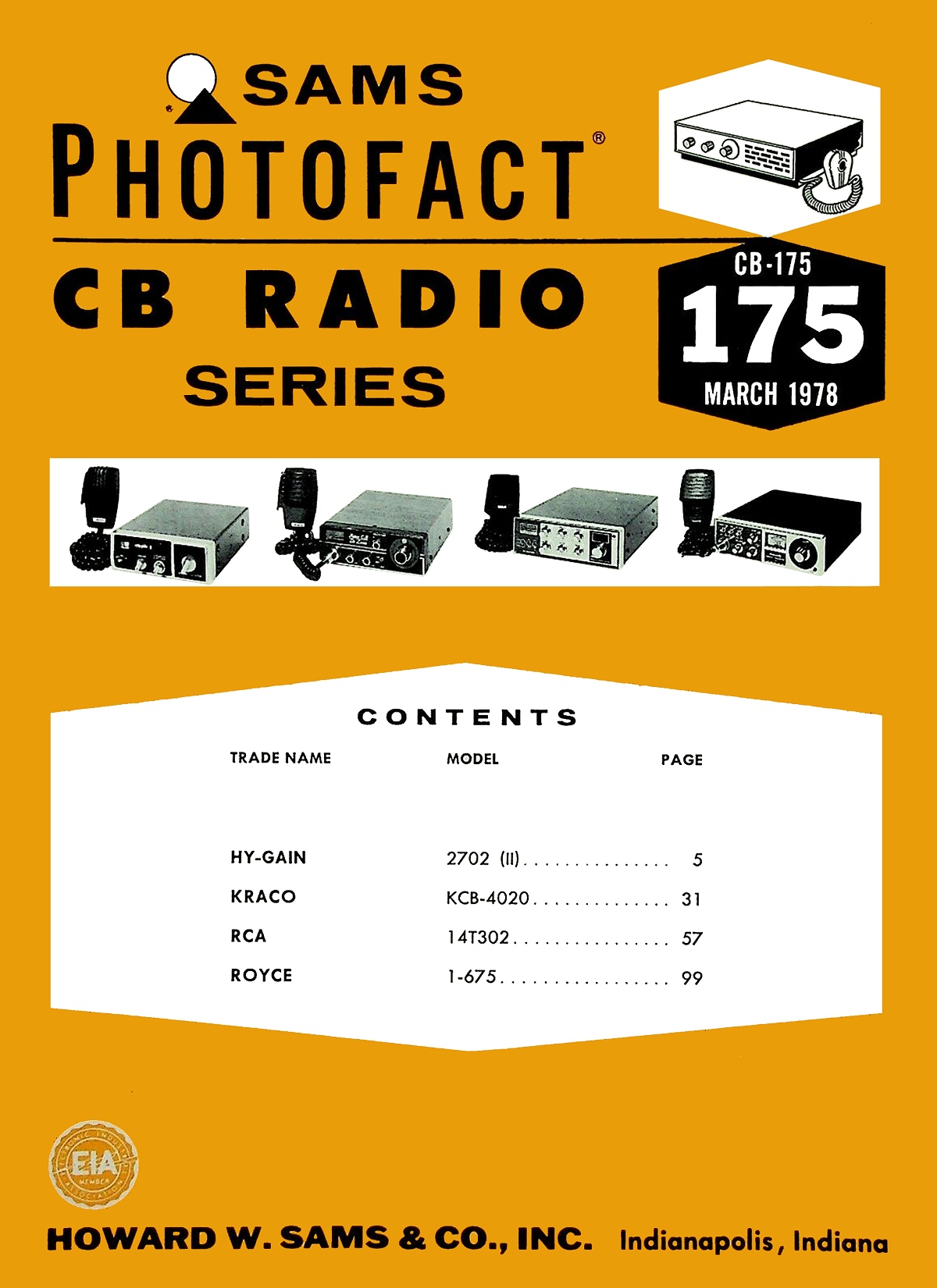

Sams Photofact #:CB-175 (March 1978)
Modifications and fixes:
Reviews:Radio & Television: #6/7 1979
Options / Accessories:
- -

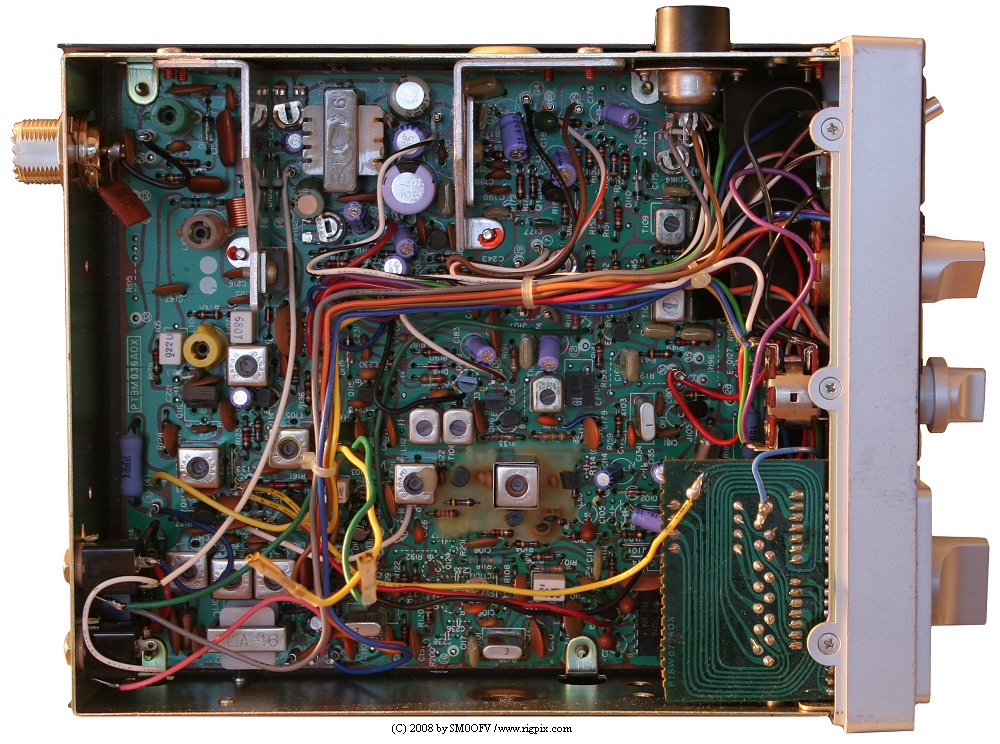

An inside picture of Hy-Gain II (2702)

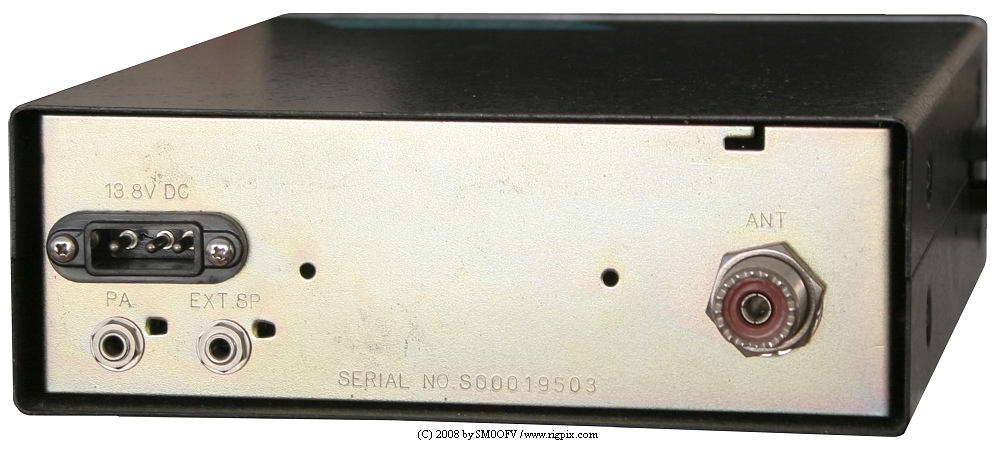

A rear picture of Hy-Gain II (2702)
