Lafayette Gamond AFS-485B

A picture of Lafayette Gamond AFS-485B

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range:26.965-28.305 MHz
Channels / tuning steps:120
Mode:AM / FM / SSB
Frequency control:PLL (PLL02A)
Frequency stability:?%
Clarifier or Delta tune:±? KHz
Power supply:Mains: 220 VAC (Fixed power cord)
or 13.8 VDC (2-pin connector)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / Two SO-239
Dimensions (W*H*D):405*150*300 mm (15.95*5.9*11.81"), without rack mounting handles
Weight:8.5 Kg (18.74 lb)
Other features: VOX. ANL. Tone hi-cut switch. ±5 KHz tune. SWR-meter.
External selcall connector.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power: AM/FM Hi: 4 W, Lo: ? W
SSB Hi: 12 W, Lo: ? W (PEP)
Modulation system:
FM deviation (Factory set):±? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 19xx-19xx (Discontinued)
Main PCB:PTBM059COX by Cybernet Electronics Corporation
Sub PCBs:
Additional info:
Related documents:PLL: PLL02A
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -

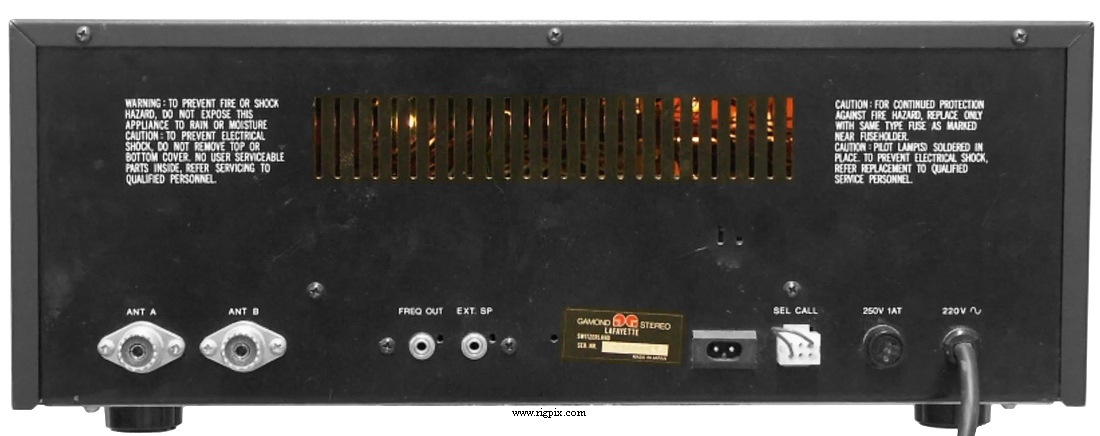

A rear picture of Lafayette Gamond AFS-485B
