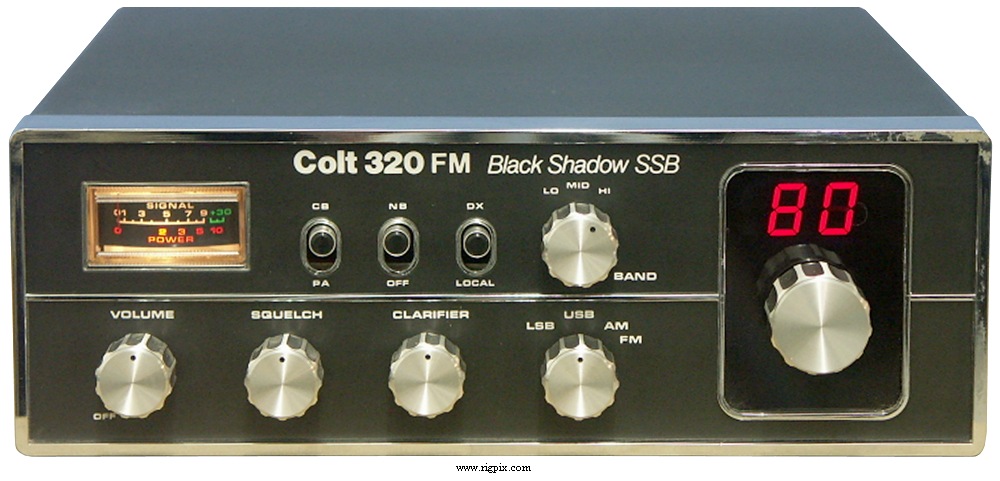

| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
26.965-27.305 MHz in three bands:
| Lo: | 26.965-27.405 MHz |
| Mid: | 27.415-27.855 MHz |
| Hi: | 27.865-28.305 MHz |
|
| Channels / tuning steps: | 120 (3*40) |
| Mode: | AM / FM / SSB |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ±0.003% |
| Clarifier or Delta tune: | ±1 KHz |
| Power supply: | 10.5-16 VDC |
| Current drain / power consumption: | RX: Max 700 mA
TX: Max 2.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 190*65*255 mm (7.48*2.56*10.04") |
| Weight: | 2.72 Kg (6 lb) |
| Other features: | PA. NB. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 1 uV (10 dB S/N)
FM: 0.5 uV (20 dB S/N)
SSB: 0.2 uV (10 dB S/N)
|
| Selectivity: |
AM: 4 KHz (-5 dB)
SSB: 2 KHz (-5 dB)
|
| Image rejection: | 50 dB |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 7.5 W
FM: 7.5 W
SSB: 12 W (PEP)
|
| Modulation system: |
AM: Class B collector amplitud modulation
SSB: Double-balanced modulator
|
| Max FM deviation (Factory set): | ±1.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1981-198x (Discontinued) |
| Main PCB: | PTBM121D4X by Cybernet Electronics Corporation |
| Sub PCBs: | |
| Additional info: | |
| Related documents: | PLL: PLL02A |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
