| GENERAL |
| Type: | Amateur HF/VHF/UHF transceiver |
| Frequency range: |
TX: 10-160 m + WARC / 6 m / 4 m / 2 m / 70 cm
RX: 0.1-2000 MHz
|
| Tuning steps: | Down to 1 Hz |
| Frequency stability: | ±? ppm |
| Mode: |
TX: AM / FM / SSB / CW / RTTY / FT8 (DMR option)
RX: AM / FM / WFM / SSB / CW / RTTY / FT8 (DMR option)
|
| Channels / memory management: |
100 regular
|
| Repeater shift / offset: | Programmable |
| Power supply: | 14.2 VDC (Battery pack)
or 9-18 VDC external |
| Current drain / power consumption: | RX: Max 350 mA
TX: Max 5 A |
| Antenna impedance / connector: | 50 ohm / One SO-239 and one TNC jack |
| Dimensions (W*H*D): | 166*50*270 mm (6.54*1.97*10.63"), with battery pack |
| Weight: | 2.4 Kg (5.29 lb), with battery and accessories
1.4 Kg (3.09 lb), without battery |
| Other features: |
ATU (1.8-74 MHz, 16.7-150 ohm). Waterfall display. Bluetooth.

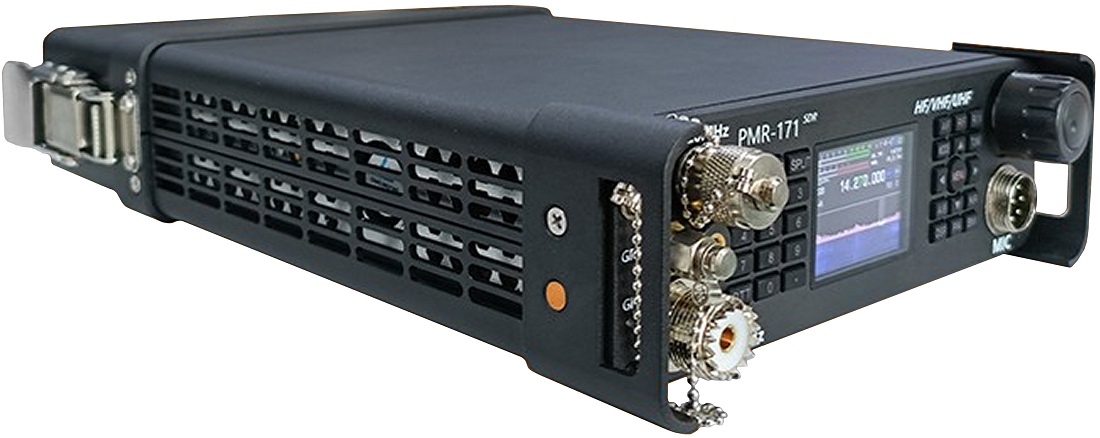

RS-232C. Ethernet port. GPS option. Snap-on battery pack for
portable operation.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
SDR
|
| Sensitivity: |
AM (BW: 6 KHz @ 10 dB S/N)
0.3-1.8 MHz: 15 uV
1.8-54 MHz: 2 uV
144-148 MHz: 2 uV
430-450 MHz: 2 uV
FM (BW: 15 KHz @ 12 dB S/N)
28-29.7 MHz: 0.5 uV
50-54 MHz: 0.25 uV
144-148 MHz: 0.3 uV
430-450 MHz: 0.5 uV
SSB/CW (BW: 2.4 KHz @ 10 dB S/N)
1.8-54 MHz: 0.18 uV
144-148 MHz: 0.25 uV
430-450 MHz: 0.25 uV
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| HF | VHF | UHF |
|---|
| AM: | 1-5 W | 1-5 W | 1-5 W |
| FM: | 0.1-10 W | 0.1-10 W | 0.1-10 W |
| SSB (PEP): | 1-10 W | 1-10 W | 1-10 W |
| CW: | 0.1-10 W | 0.1-10 W | 0.1-10 W |
|
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 202x-202x |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
