| GENERAL |

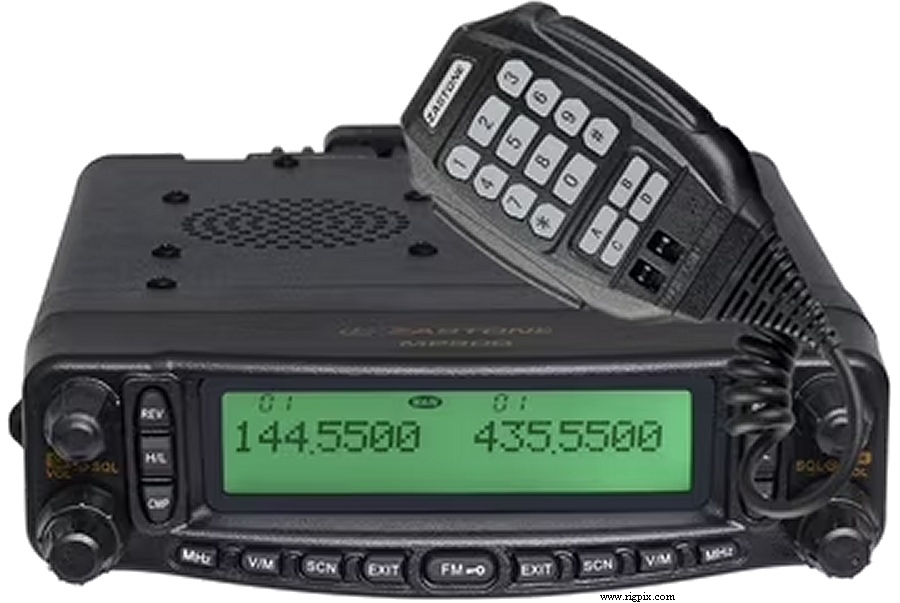

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 136-174 / 400-470 MHz
RX: 88-108 / 108-136 / 136-174 / 400-470 MHz
|
| Tuning steps: | ? KHz |
| Frequency stability: | ±? ppm |
| Mode: | TX: FM / NFM
RX: AM / FM / NFM / WFM |
| Channels / memory management: |
200 regular (100 per band)
Non-volatile EEPROM storage
Scanning
|
| Repeater shift / offset: | Programmable |
| Power supply: | ? VDC |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / N-jack |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? lb) |
| Other features: |
CTCSS/PL and DCS. DTMF. Twin RX. Detachable front panel and more...
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low 3 | Low 2 | Low 1 |
|---|
| 2 m: | 40 W | ? W | ? W | ? W |
| 70 cm: | 35 W | ? W | ? W | ? W |
|
| Modulation system: | |
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2013-201x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
