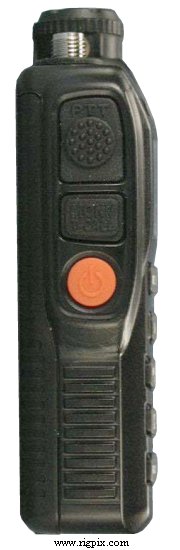

| GENERAL |
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
USA
TX: 144-148 / 430-450 MHz
RX: 0.5-999 MHz (Cellular blocked)
|
| Tuning steps: | 5 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability: | ±5 ppm @ -10 to +50°C (14 to 122°F) |
| Mode: | TX: FM / NFM
RX: AM / FM / NFM / WFM |
| Channels / memory management: |
900 regular with alpha tags (6 characters)
99 skip
11 home
50 band edge pairs (PMS)
10 NOAA weather channels
57 VHF marine channels
89 SW BC channels
Non-volatile EEPROM storage
|
| Repeater shift / offset: |
VHF: ±600 KHz
UHF: ±5 MHz
(Defaults, programmable 0 to 99.95 MHz in 50 KHz steps)
|
| Power supply: | 3.7 VDC (Li-Ion battery pack)
or 3.7-7 VDC external |
| Current drain / power consumption: | RX: 30-120 mA
TX: Max 1.3 A @ 3.7 V |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 47*81*23 mm (1.9*3.2*0.9") |
| Weight: | 130 g (4.6 oz), with battery and antenna |
| Other features: |
CTCSS/PL and DCS. DTMF. ARTS. WIRES. Internal temp sensor.
CCO (Channel Counter Operation). Built-in bar antenna for MW reception.
Messaging feature. 1750 Hz repeater tone. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (AM/FM BC)
1st IF: 130 KHz
Double conversion superheterodyne (AM/FM)
1st IF: 47.25 MHz
2nd IF: 450 KHz
Triple conversion superheterodyne (WFM)
1st IF: 45.8 MHz
2nd IF: 10.7 MHz
3rd IF: 1 MHz
|
| Sensitivity: |
AM (10 dB S/N)
0.5-1.8 MHz: 4 uV
1.8-30 MHz: 3 uV
108-137 MHz: 1.5 uV
FM (12 dB SINAD)
30-54 MHz: 0.35 uV
54-76 MHz: 1 uV
137-140 MHz: 0.2 uV
140-150 MHz: 0.16 uV
150-174 MHz: 0.2 uV
174-225 MHz: 1 uV
300-350 MHz: 0.5 uV
350-400 MHz: 0.2 uV
400-470 MHz: 0.18 uV
800-999 MHz: 1.5 uV
WFM (12 dB SINAD)
76-108 MHz: 1.5 uV
540-800 MHz: 3 uV
|
| Selectivity: |
AM/FM
12 KHz (-6 dB)
35 KHz (-60 dB)
WFM
200 KHz (-6 dB)
300 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 50 mW at 10% distortion / 8 ohm (@ 3.7 V) |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High
@ 6 V | High
@ 3.7 V | Low
@ 6 V | Low
@ 3.7 V |
|---|
| 2 m: | 3 W | 1.5 W | 300 mW | 100 mW |
| 70 cm: | 2 W | 1 W | 300 mW | 100 mW |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | Normal: ±5 KHz
Halfdev: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB at High power output |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2007-20xx (Discontinued) |
| Additional info: | |
| Related documents: | User manual (3 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CN-3
CSC-92
CT-27
CT-44
E-DC-21
FBA-37
FNB-82LI
MH-34B4B
PA-46B
PA-46C
PA-46U
SSM-57A
YHA-66
|
SMA-to-BNC adapter
Soft case
Cloning cable
Microphone adapter
DC cable with cigarette lighter adapter
Battery case. Three LR6 / AA batteris
Li-Ion battery pack. 3.7 V, 1100 mAh
Speaker-microphone
2.5 hr charger (100-120 VAC)
2.5 hr charger (230-240 VAC)
2.5 hr charger (230 VAC, UK)
VOX headset
Rubber flex antenna
|
|
