| GENERAL |
| Type: | Amateur HF/VHF/UHF transceiver |
| Frequency range: |
TX: 10-160 m + WARC / 6 m / 2 m / 70 cm (Also 4 m for UK version)
RX: 0.03-174 / 400-470 MHz
|
| Tuning steps: | 1 / 5 / 10 / 20 Hz |
| Frequency stability: | ±0.5 ppm @ -10 to +50°C (14 to 122°F) after 1 minute warmup |
| Mode: | AM / FM / NFM / SSB / CW / DV (C4FM "Fusion") |
| Channels / memory management: |
PMG
MAG
QMB
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC ±15% (10.8 VDC battery pack when undocked) |
| Current drain / power consumption: | RX: 600-900 mA
TX: Max 21 A @ 100 W output power
TX: Max 3 A @ 10 W output power (Undocked) |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 213*89*240 mm (8.4*3.5*9.4")
213*89*55 mm (8.4*3.5*2.2"), undocked |
| Weight: | 3.9 Kg (8.6 lb)
1.25 Kg (2.75 lb), undocked |
| Other features: |
4.3" color touch TFT with switchable display modes. 3DSS bandscope. Two independent receivers.
Two speakers. 32-bit IF DSP. Wires-X. USB ports for audio I/O and CAT operation. S-DX. AMS. APRS.
Micro SD card slot. Auto-ATU. The transceiver part can be undocked from the RF power amplifier
for field operation. Bluetooth option. Some other options are for undocked field use.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Direct sampling superheterrodyne (Below 48 MHz)
Single conversion IF sampling (Above 48 MHz)
IF: 44.5-49.5 MHz (Main RX) - 41.3-44.3 MHz (Sub RX)
|
| Sensitivity: |
AM (BW: 6 KHz / 10 dB S+N/N)
0.5-1.8 MHz: 7.9 uV
1.8-30 MHz: 2 uV
50-54 MHz: 1 uV
70-70.5 MHz: 2 uV
144-148 MHz: 1 uV
430-450 MHz: 1 uV
FM (BW: 12 KHz / 12 dB SINAD)
28-30 MHz: 0.25 uV
50-54 MHz: 0.2 uV
70-70.5 MHz: 0.25 uV
144-148 MHz: 0.125 uV
430-450 MHz: 0.125 uV
SSB/CW (BW: 2.4 KHz / 10 dB S+N/N)
1.8-30 MHz: 0.16 uV
50-54 MHz: 0.125 uV
70-70.5 MHz: 0.16 uV
144-148 MHz: 0.125 uV
430-450 MHz: 0.125 uV
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: |
AM (BW=6 KHz - Width: Center)
6 KHz (-6 dB)
15 KHz (-60 dB)
FM (BW=12 KHz - Width: Center)
12 KHz (-6 dB)
25 KHz (-60 dB)
SSB (BW=2.4 KHz - Width: Center)
2.4 KHz (-6 dB)
3.6 KHz (-60 dB)
CW (BW=0.5 KHz - Width: Center)
500 Hz (-6 dB)
750 Hz (-60 dB)
|
| Image rejection: | 70 dB or better (HF amateur bands)
60 dB or better (VHF / UHF amateur bands) |
| AF output power / speaker: | 4 W at 10% distortion / 4 ohm
1.5 W at 10% distortion / 4 ohm (Undocked) |
| External speaker connector: | TS minijack (3.5 mm), 4-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Docked
HF/6 m | Docked
2 m/70 cm | Undocked
@Battery | Undocked
@13.8V |
|---|
| AM: | 5-25 W | 5-13 W | 0.5-1.5 W | 0.5-2.5 W |
| FM: | 5-100 W | 5-50 W | 0.5-6 W | 0.5-10 W |
| SSB (PEP): | 5-100 W | 5-50 W | 0.5-6 W | 0.5-10 W |
| CW: | 5-100 W | 5-50 W | 0.5-6 W | 0.5-10 W |
| C4FM: | 5-100 W | 5-50 W | 0.5-6 W | 0.5-10 W |
|
| Modulation system: |
AM: Low-level (Early stage)
FM: Variable reactance
SSB: Balanced
|
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | HF: Better than -50 dB
6 m: Better than -63 dB
2 m/70 cm: Better than -60 dB |
| Microphone impedance / connector: | 200-10000 ohm (600 ohm nominal) / ?-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2025-202x |
| Additional info: |

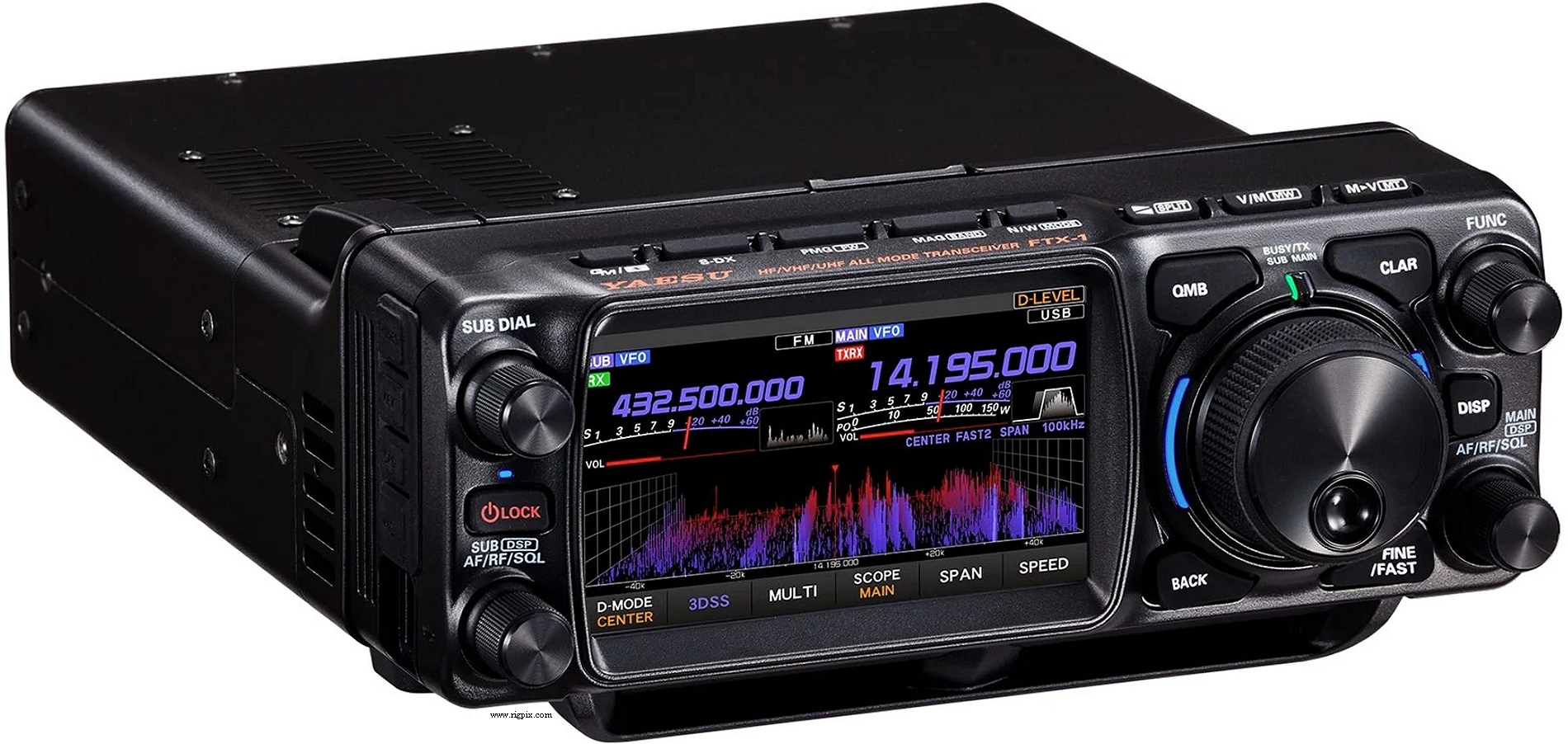

This is an FTX-1 Field with the SPA-1 included from factory.
Indicated price, may 2025 in Sweden: SEK 27495:-
Indicated price, may 2025 in Germany: 2398.00 Euro
Indicated price, may 2025 in the US: $1899.95
|
| Related documents: |
User manual (4.6 MB)
Advanced manual (1.3 MB)
APRS manual (456 KB)
GM manual (340 KB)
Leaflet (4.7 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
ATAS-25
ATAS-120A
ATBK-100
BU-6
FC-40
FC-80
FC-90
FGPS-5
M-1
M-70
M-90D
M-90MS Kit
M-100
MHG-1
SBR-52LI
SCF-1
SPG-1
SSM-75E
SSM-BT20
YH-77STA
|
Manual active tuning antenna
Automatic active tuning antenna
Antenna base kit for ATAS-120A
Bluetooth unit
External automatic antenna tuner (Longwire compatible)
Snap-on automatic antenna tuner (HF/6 m)
Automatic antenna tuner (10 W longwire and 50 ohm compatible)
GPS antenna
Reference desk microphone
Desk microphone
Dynamic desk microphone
Dynamic microphone stand kit
Deal element desk microphone
Side carry handle (For SPA-1 only)
Li-Ion battery pack. 10.8 V, 6400 mAh
Cooling fan
Protection guard
Hand microphone
Bluetooth headset
Lightweight stereo headphones
|
|
