| GENERAL |
| Type: | Amateur HF/VHF transceiver |
| Frequency range: |
TX: 10-160 m + WARC / 6 m
RX: 0.03-60 MHz
|
| Tuning steps: | 1 / 5 / 10 / 100 Hz |
| Frequency stability: | ±0.5 ppm @ -10 to +60°C (14 to 140°F), after 1 minute warmup |
| Mode: | AM / FM / SSB / CW / RTTY / Packet |
| Channels / memory management: |
99 regular with alpha tags
5 QMB
9 scan edge pairs (PMS)
Non-volatile EEPROM storage
|
| Repeater shift / offset: |
10 m: 0-1 MHz in 10 KHz steps
6 m: 0-4 MHz in 10 KHz steps
|

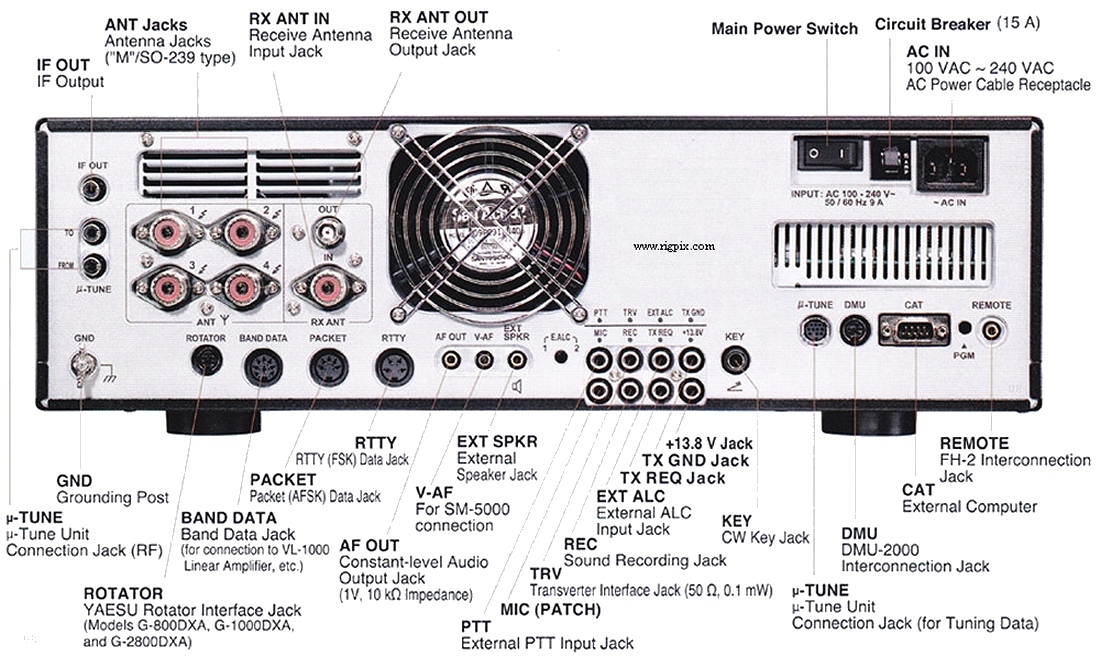

| Power supply: | Mains: 90-264 VAC (3-pin IEC C14 connector) |
| Current drain / power consumption: | RX: 70-80 VA
TX: Max 720 VA |
| Antenna impedance / connector: |
HF: 50 ohm / SO-239 (16.7-150 ohm with ATU on)
6 m: 50 ohm / SO-239 (25-100 ohm with ATU on)
|
| Dimensions (W*H*D): | 462*135*389 mm (18.19*5.32*15.31") |
| Weight: | 21 Kg (46.3 lb) |
| Other features: | CTCSS/PL. Two 32-bit floating point IF-DSP. CAT control. Twin RX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
VFO A: Double conversion superheterodyne
1st IF: 9 MHz
2nd IF: 30 KHz (24 KHz for AM/FM)
VFO B: Triple conversion superheterodyne
1st IF: 40.455 MHz
2nd IF: 455 KHz
3rd IF: 30 KHz (24 KHz for AM/FM)
|
| Sensitivity: |
AM (6 KHz BW, 10 dB S/N)
0.5-1.8 MHz: 6 uV
1.8-30 MHz: 2 uV
50-54 MHz: 1 uV
FM (16 KHz BW, 12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.35 uV
SSB/CW (2.4 KHz BW, 10 dB S/N)
0.5-1.8 MHz: 2 uV
1.8-30 MHz: 0.2 uV
50-54 MHz: 0.125 uV
|
| Selectivity: |
AM:
6 KHz (-6 dB)
15 KHz (-60 dB)
FM:
12 KHz (-6 dB)
30 KHz (-60 dB)
SSB:
2.4 KHz (-6 dB)
3.6 KHz (-60 dB)
CW:
500 Hz (-6 dB)
750 Hz (-60 dB)
|
| Image rejection: | 70 dB (HF)
60 dB (6 m) |
| AF output power / speaker: | 2.5 W at 10% distortion / 4 ohm |
| External speaker connector: | 3.5 mm, 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| HF | 6 m |
|---|
| AM: | 5-50 W | 5-50 W |
| FM: | 10-200 W | 10-200 W |
| SSB (PEP): | 10-200 W | 10-200 W |
| SSB (Class A): | 10-75 W | 10-75 W |
| CW: | 10-200 W | 10-200 W |
|
| Modulation system: |
AM: Low-level (Early stage)
FM: Variable reactance
SSB: Balanced
|
| Max FM deviation (Factory set): | Normal: ±5 KHz
Narrow: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2009-20xx (Discontinued) |
| Additional info: | New price 2012 in Sweden: SEK 54950:- |
| Related documents: |
Brochure (10.2 MB)
User manual (10.3 MB)
CAT manual (249 KB)
DSP: TMS320C6727B
RF finals: VRF150
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
DMU-2000
MD-200A8X
MTU-30/20
MTU-80/40
MTU-160
RF MU-2000
SM-5000
SP-2000
T9101556
VL-1000
XF-126CN
YH-77STA
|
Data management unit
Desktop microphone
External µ-Tuning unit for 20 & 30 meters
External µ-Tuning unit for 40 & 80 meters
External µ-Tuning unit for 160 meters
RF µ-Tuning kit (Required to house MTU units)
Station monitor bandscope
External speaker with filters
Antenna rotator connection cable
Linear amplifier
300 Hz roofing filter
Lightweight headphones
|
|
