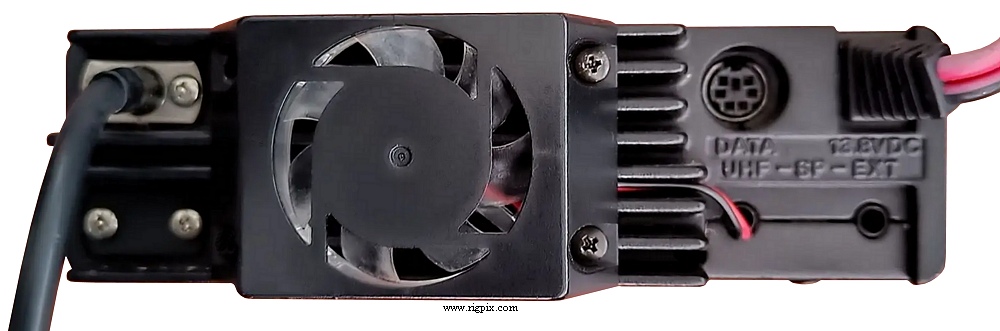

| GENERAL |
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 110-550 / 750-1300 MHz
USA
TX: 144-148 / 430-450 MHz
RX: 110-550 / 750-1300 MHz (Cellular blocked)
|
| Tuning steps: |
VHF: 5 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz
UHF: 10 / 12.5 / 20 / 25 / 50 KHz
|
| Frequency stability: | ±5 ppm @ -5 to +50°C (23 to 122°F) |
| Mode: | TX: FM / NFM
RX: AM / FM / NFM |
| Channels / memory management: |
100 regular (50 per band)
2 home (1 per band)
4 scan edge pairs/PMS (2 per band)
Priority function
RAM storage with lithium battery backup
|
| Repeater shift / offset: |
Europe
2 m: ±600 KHz
70 cm: ±1.6 or 7.6 MHz
USA
2 m: ±600 KHz
70 cm: ±5 MHz
(Defaults, programmable)
|
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: Max 1 A
TX: Max 11.5 A |
| Antenna impedance / connector: | 50 ohm / N-jack (Europe) or SO-239 (USA), on pigtail |
| Dimensions (W*H*D): | 140*40*153 mm (5.51*1.58*6.02") |
| Weight: | 1.0 Kg (2.2 lb) |
| Other features: |
CTCSS/PL encoder. DTMF. ARS. Dimmer. 1K2/9K6 packet jack.
Twin RX (VV / VU / UU).
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 45.05 MHz (VHF) - 58.525 MHz (UHF)
2nd IF: 455 KHz
|
| Sensitivity: | Main RX: 0.18 uV (12 dB SINAD)
Sub RX: 0.25 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB)
24 KHz (-60 dB) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 4-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 50 W | 10 W | 5 W |
| 70 cm: | 35 W | 10 W | 5 W |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm to 10 Kohm / 6-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2003-200x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (10 MB)
Service manual (46 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-3
ADMS-2C
CT-39
FP-800
FTS-22
MEK-2
MH-35B6J
MH-42B6J
MMB-36
MMB-60
SP-7
SB-10
YH-1
|
VHF/UHF diplexer for two-antenna operation
Programming kit with software
Packet cable
AC power supply with speaker
Tone squelch unit
Microphone extension kit
Hand microphone with DTMF pad
Hand microphone with 1750 Hz tone burst button
Mobile mounting bracket
Quick-release mobile bracket
External speaker
PTT switch unit
Headset with microphone
|
|
