| GENERAL |

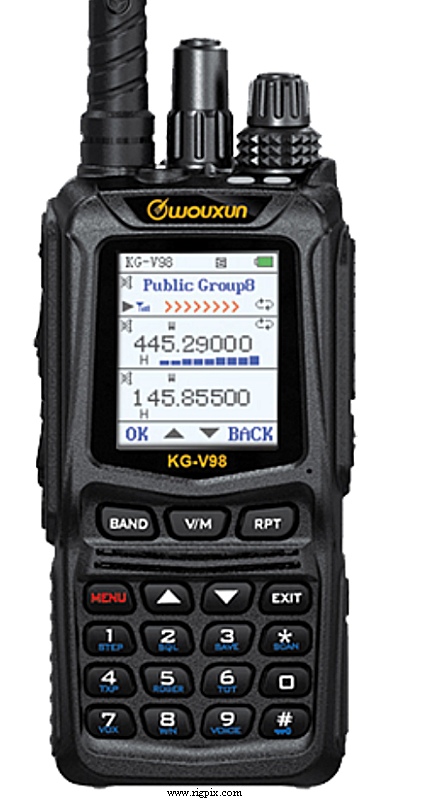

| Type: | Amateur VHF/UHF and PoC transceiver |
| Frequency range: |
TX: 136-174 / 400-470 MHz
RX: 76-108 / 136-174 / 400-470 MHz
PoC over 2G / 3G /4G cellular networks
|
| Tuning steps: | 5 / 6.25 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +40°C (-4 to +104°F) |
| Mode: | TX: FM / NFM / PoC
RX: FM / NFM / WFM / PoC |
| Channels / memory management: |
999 regular
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 50*132*28 mm (1.97*5.2*1.1") |
| Weight: | 298 g (10.5 oz) |
| Other features: |
DTMF encode/decode. VOX. LED flashlight. Crossband
repeat. Voice guide. SIM-card slot. Stopwatch. Linux
based operative system. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: |
FM/NFM: 0.25 uV (12 dB SINAD)
PoC: -106 dBm/1.12 uV (No BER reference)
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | FM: 70 dB (Adjacent channel)
NFM: 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| 2 m: | 5 W |
| 70 cm: | 4 W |
| PoC: | 23-25 dBm (200-320 mW) |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 20xx-20xx |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
ANO-011
BLO-015
CCO-002
CHA-014
CHA-032
OTH-002
OTH-005
PCO-009
SMO-002
|
Flexible antenna
Li-Ion battery pack. 7.4 V, 2500 mAh
Car charger
Desktop charger
Six bay desktop charger
Belt clip
Hand strap
USB programming cable
Speaker-microphone
|
|
