| GENERAL |

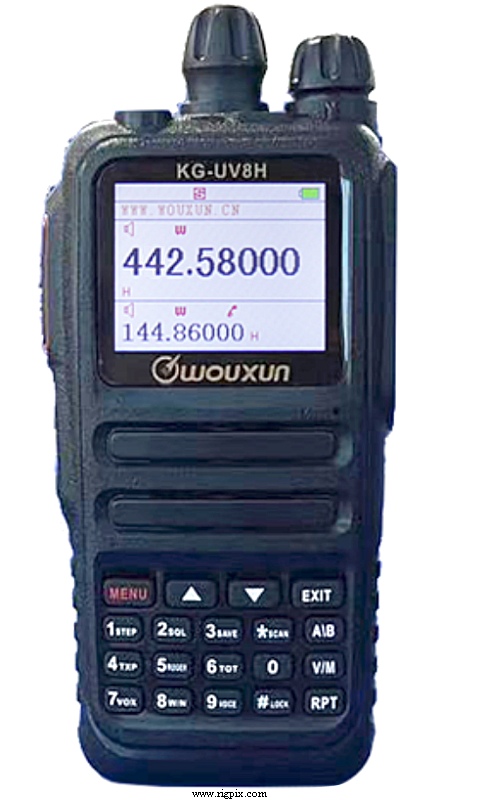

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 136-174 / 400-470 MHz
RX: 136-174 / 400-470 MHz
Some versions have limited frequency ranges
|
| Tuning steps: | 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +40°C (-4 to +104°F) |
| Mode: | FM / NFM |
| Channels / memory management: |
999 regular
Scanning
Priority function
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 62*124*34 mm (2.44*4.88*1.34") |
| Weight: | 490 g (1.08 lb) |
| Other features: |
CTCSS/PL and DCS. DTMF encode/decode. Crossband repeater.
Voice guide. LED flashlight. Voice encryption. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | FM: 70 dB (Adjacent channel)
NFM: 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 10 W | 7 W | 1 W |
| 70 cm: | 8 W | 5 W | 1 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 20xx-20xx |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
ANO-039
BLO-011
BLO-016
BLO-016-USB-C
CHA-028
OTH-001
OTH-005
|
Flexible antenna
Li-Ion battery pack. 7.4 V, 3200 mAh / 23.68 Wh
Li-Ion battery pack. 7.4 V, 2600 mAh / 19.24 Wh
Li-Ion battery pack. 7.4 V, 2600 mAh / 19.24 Wh
Desktop charger
Belt clip
Hand strap
|
|
