| GENERAL |

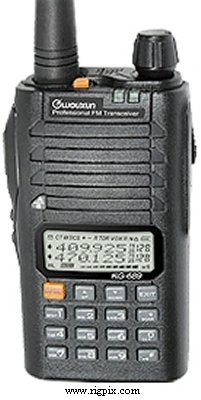

| Type: | Amateur UHF transceiver |
| Frequency range: |
TX: 400-470 MHz
RX: 400-470 MHz
|
| Tuning steps: | 5 / 6.25 / 10 / 12.5 / 25 KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM / NFM |
| Channels / memory management: |
128 regular
|
| Repeater shift / offset: | Freely programmable |
| Power supply: | 7.2 VDC (Li-ion battery pack) |
| Current drain / power consumption: | RX: 35 mA (Squelched)
TX: Max 700 mA |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 55*108*38 mm (2.16*4.25*1.5") |
| Weight: | ? g (? oz) |
| Other features: |
CTCSS/PL and DCS. DTMF. Scrambler. VOX .PC-programmable. Voice guide.
Multi-color back light.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Selectivity: | |
| Image rejection: | 60 dB |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 200x-20xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
