| GENERAL |

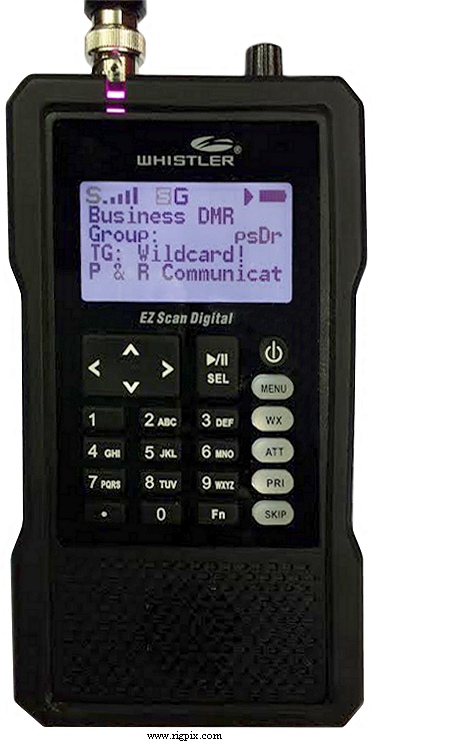

| Type: | VHF/UHF receiver/scanner |
| Frequency range: |
25-54 MHz
108-174 MHz
216-512 MHz
764-782 MHz
791-797 MHz
806-824 MHz
849-869 MHz
894-960 MHz
1240-1300 MHz
(Cellular blocked in the US)
|
| Tuning steps: | ? / ? / ? KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / FM / NFM / DV (P25 / DMR / MotoTRBO / NXDN) |
| Channels / memory management: |
Object oriented
Alpha tags
Frequencies and settings load into system RAM from
the MicroSD card at power on
|
| Power supply: | 4.8-6 VDC (Four R6 / AA alkaline or NiMH batteries) |
| Current drain / power consumption: | 170 mA (Squelched, backlight off) |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 67*135*28 mm (2.12*5.31*1.06") |
| Weight: | 210 g (7.4 oz), without batteries and antenna |
| Other features: |
Trunking: Motorola, LTR, EDACS. Spectrum sweeper. Discriminator output.
Audio recorder. Weather alert. Skywarn. MicroSD card slot. CTCSS/PL and DCS.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 380.8 MHz
2nd IF: 21.4 MHz
3rd IF: 455 KHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 500 mW at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Philippines, 2016-202x (Discontinued) |
| Additional info: | New price 2021 in the US: $329.99 |
| Related documents: |
User manual (906 KB)
Quick start guide (833 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
