MFJ-1278T

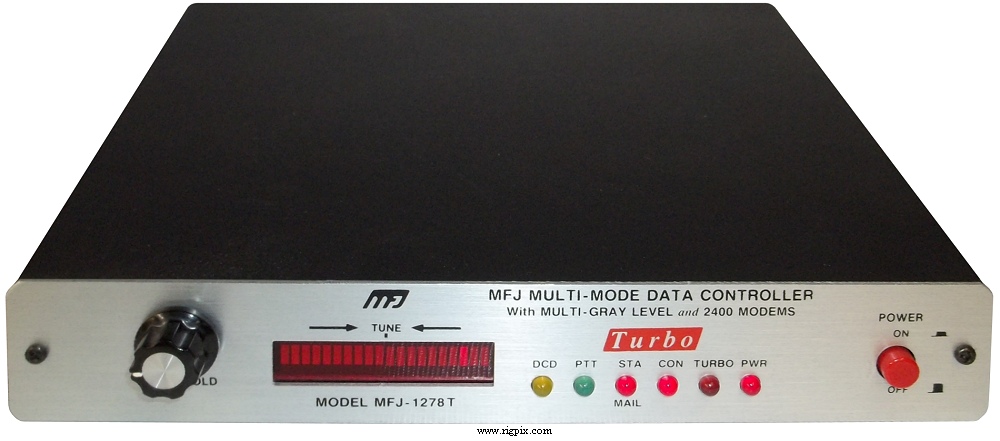

A picture of MFJ-1278T

SPECIFICATIONS

GENERAL
Type:Amateur multi-mode data controller and TNC
CPU:Z80A @ 4.91 MHz
System ROM:64 KB (27C512 EPROM)
System RAM:32 KB (43256C-15L SRAM with battery backup)
Computer ports / Speed:RS-232C (DB25) and TTL / 300, 1200, 2400, 4800 and 9600 bd
Power supply:12 VDC (Barrel connector, center positive)
Current drain / power consumption:Less than 500 mA
Dimensions (W*H*D):238*35*240 mm (9.37*1.38*9.45")
Weight:1.15 Kg (2.54 lb)




RADIO COMM'S SECTION
Modes

(Depending on firmware and
installed hardware options):
Packet
AMTOR
RTTY
ASCII
CW
NavTex
WeFax
SSTV.
A contest memory CW keyer mode is also included
GPS / APRS functions:No
Mailbox:3 KB
Radio ports: Radio 1: 5-pin DIN (180°)
Radio 2: 5-pin DIN (180°)
Data rate over radio:45-2400 bd




MISCELLANEOUS
Manufactured:Hong Kong, 1990-199x (Discontinued)
Additional info: This is basically an MFJ-1278 with the 2400 bd option
fitted from factory and a front panel to indicate this.

New price 1991 in the US: $359.95
Related documents: Fast start (691 KB)
User manual v3 (27 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
