Sony TFM-1600W

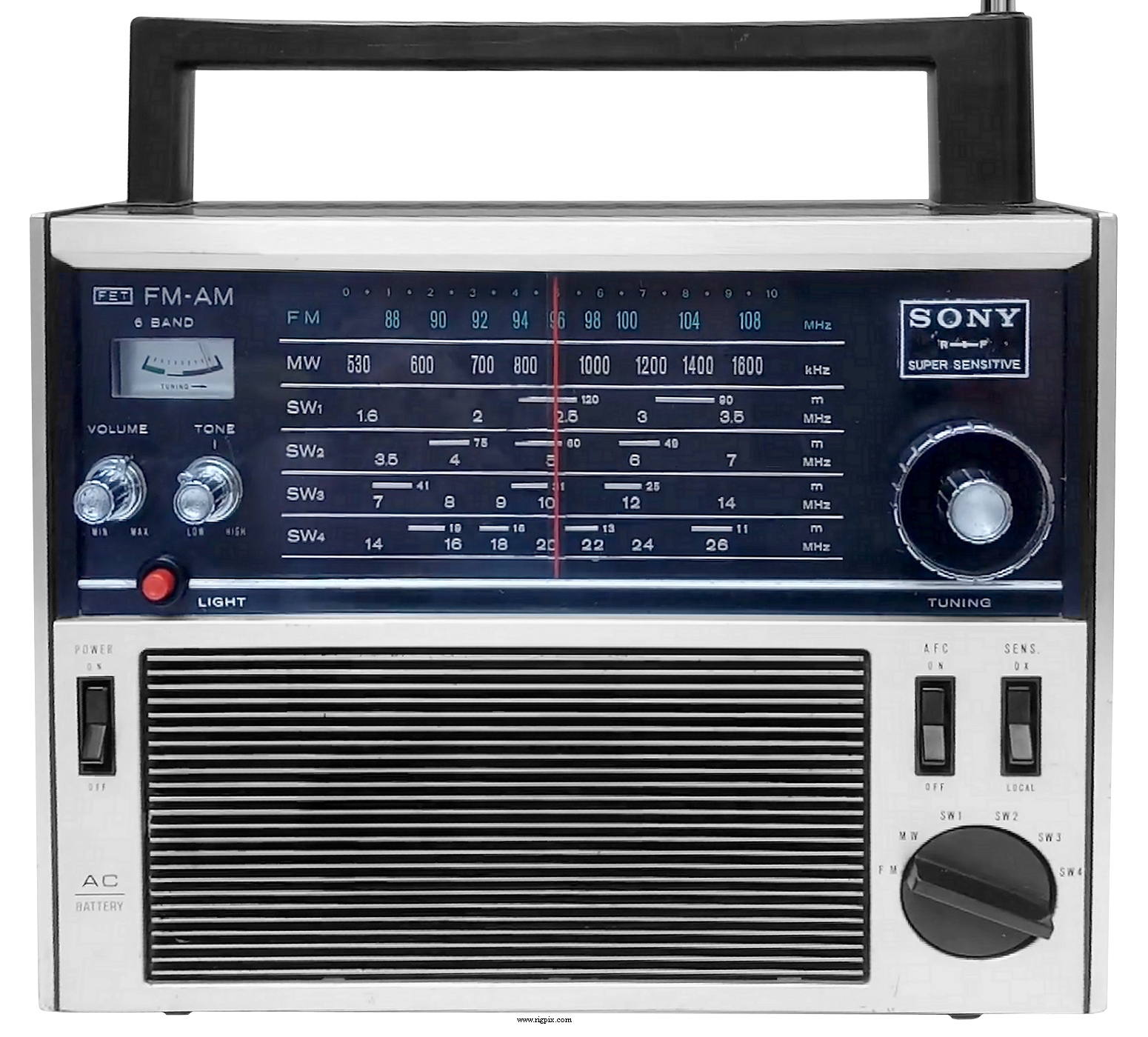

A picture of Sony TFM-1600W

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range: 0.53-26.1 / 87.5-108 MHz in six bands
FM:   87.5-108 MHz
MW:   0.53-1.605 MHz
SW1:   1.6-3.5 MHz
SW2:   3.5-7.0 MHz
SW3:   7.0-14 MHz
SW4:   14-26.1 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / WFM
Channels / memory management: None
Power supply:Mains: 117 VAC
or 6 VDC (Four LR20 / D batteries)
Current drain / power consumption:? mA
Antenna impedance / connector:- / Telescopic whip and ferrite rod
Dimensions (W*H*D):290*222*100 mm (11.42*8.74*3.94")
Weight:3.65 Kg (8.05 lb)
Other features:




RECEIVER SECTION
Receiver system: Single conversion superheterodyne
IF: 10.7 MHz (WFM) . 455 KHz (AM)
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:1.7 W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Japan, 1971-197x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A rear picture of Sony TFM-1600W
