| GENERAL |

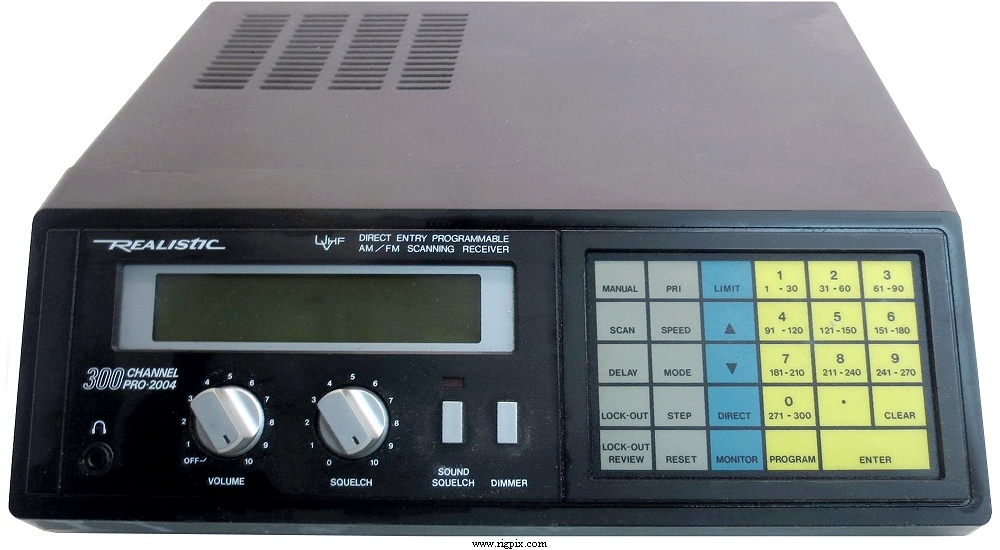

| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: |
Europe and Australia
25-520 / 760-1300 MHz
|
| Tuning steps: | 5 / 12.5 / 30 / 50 KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / FM / WFM |
| Channels / memory management: |
300 regular in 10 banks @ 16 or 8 channels per second
10 temporary in 1 bank
10 search ranges @ 16 or 8 steps per second
1 priority, freely selectable
RAM storage with a 9 V battery backup
|
| Power supply: | Mains: 220-240 VAC (Fixed power cord)
or 13.8 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | Less than 870 mA @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 275*75*230 mm (10.82*2.95*9.05") |
| Weight: | 3.2 Kg (7 lb) |
| Other features: | Sound squelch. Tape out jack. 10 dB attenuator. Dimmer. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 607.505-611.5 MHz
2nd IF: 48.5 MHz
3rd IF: 455 KHz (AM/FM) - 10.7 MHz (WFM)
|
| Sensitivity: |
AM (20 dB S/N @ 60% modulation)
25-520 MHz: 2 uV
760-1100 MHz: 2 uV
1100-1300 MHz: 3 uV
FM (20 dB S/N @ 3 KHz deviation)
25-520 MHz: 0.5 uV
760-1100 MHz: 0.5 uV
1100-1300 MHz: 3 uV
WFM (30 dB S/N @ 22.5 KHz deviation)
25-520 MHz: 3 uV
760-1100 MHz: 3 uV
1100-1300 MHz: 10 uV
|
| Squelch sensitivity: |
AM/FM
25-1100 MHz: 0.5 uV (Threshold)
1100-1300 MHz: 3 uV (Threshold)
WFM
25-1100 MHz: 3 uV (Threshold)
1100-1300 MHz: 10 uV (Threshold)
|
| Noise figure: | |
| Selectivity: |
AM/FM
18 KHz (-6 dB)
30 KHz (-50 dB)
WFM
300 KHz (-6 dB)
600 KHz (-50 dB)
|
| Image rejection: | |
| AF output power / speaker: | 1.8 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (By GRE), 1986-1988 (Discontinued) |
| Additional info: | |
| Related documents: |
Service manual (33.6 MB)
FM/IF: TK10420
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
