Siglent SSG3032X

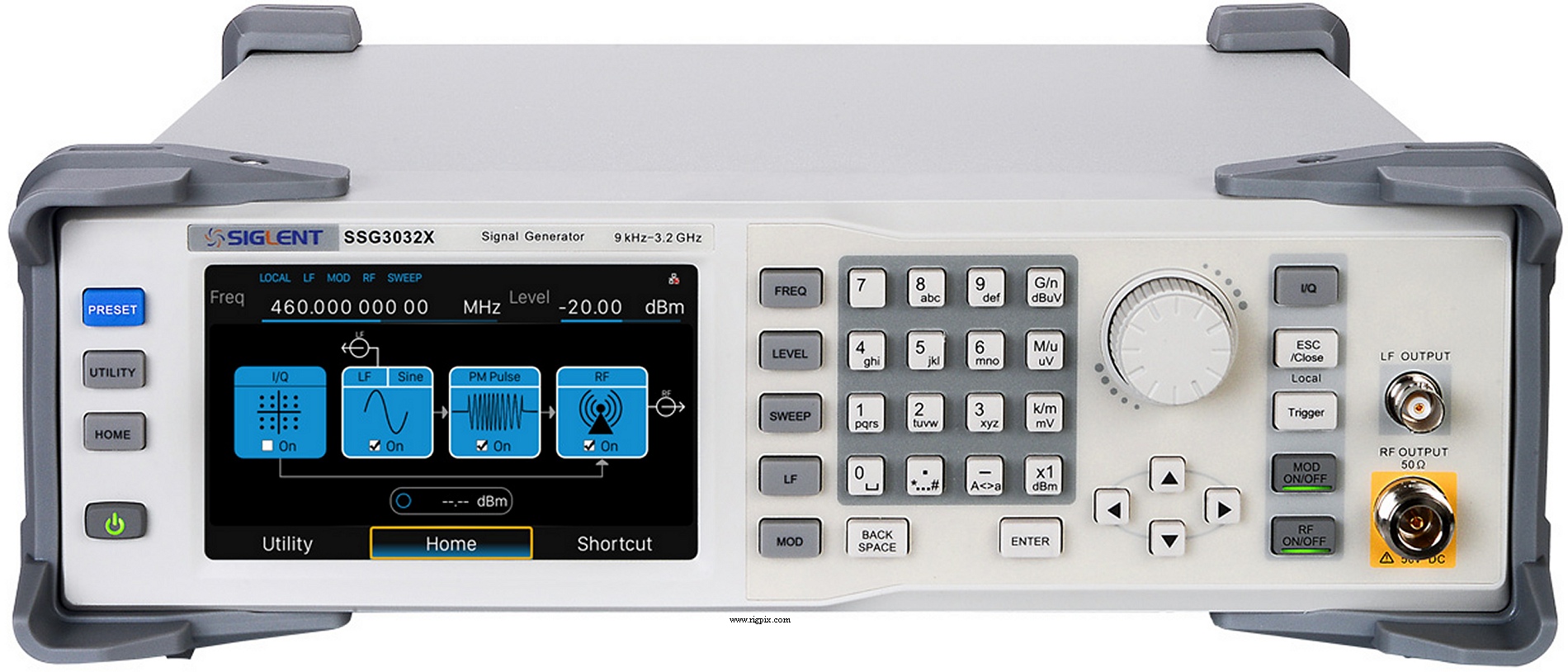

A picture of Siglent SSG3032X

SPECIFICATIONS

Type:Signal generator
Frequency range:9 KHz to 3.2 GHz
Mode:AM / FM / PM
RF Power Output:+13 dBm (+20 dBm) to -110 dBm
Power supply:Mains: 100-240 VAC
Current drain/power consumption:Max 35 W
Dimensions (W*H*D):338*113*369 mm (13.31*4.45*14.53")
Weight:4.8 Kg (10.58 lb)
Manufactured:201x-202x
Other:5" touch screen.
Related documents: Datasheet (2.1 MB)
Quickstart guide (1.3 MB)
User manual (2.6 MB)
Programming guide (2.2 MB)
Modifications and fixes:
Reviews:
Options/Accessories:
SSG-RMK
SSG3000X-PT
USB-GPIB
Rack mount kit
Pulse train generator
USB-GPIB adapter
A rear picture of Siglent SSG3032X
