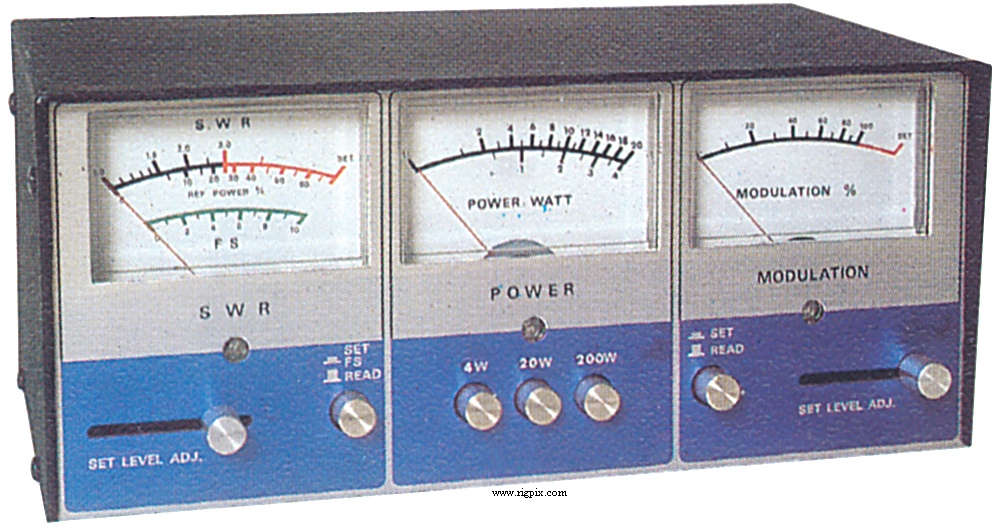

Saga 520
SPECIFICATIONS
| Type: | SWR/Power, field strength and modulation meter |
| Frequency range: | 25-30 MHz |
| Power measure ranges: | 0-4 W
0-20 W
0-200 W |
| Insertion loss: | |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Power supply: | - |
| Current drain/power consumption: | - |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Manufactured: | Japan, 197x-1981 (Discontinued) |
| Other: | Modulation: 0-100% |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
