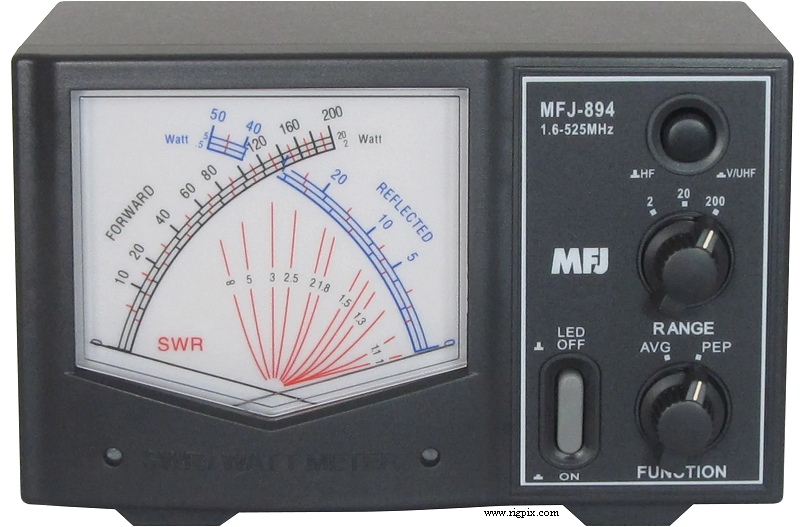

| Type: | SWR / Wattmeter |
| Frequency range: | 1.6-525 MHz |
| Power measure ranges: | 2 W
20 W
200 W |
| Insertion loss: | |
| Impedance / connectors: | 50 ohm / Four SO-239 (N-jack option) |
| Power supply: | 9-14 VDC |
| Current drain / power consumption: | Less than 200 mA |
| Dimensions (W*H*D): | 184*118*131 mm (7.2*4.64*5.2") |
| Weight: | 1.07 Kg (2.36 lb) |
| Manufactured: | Taiwan, 20xx-20xx (Discontinued) |
| Additional info: |
Cross-needle meter. Peak or average reading.
Accuracy: ±10% of full scale
Minimum power for accurate SWR measurement is 1 W
|
| Related documents: |
User manual (4.4 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
