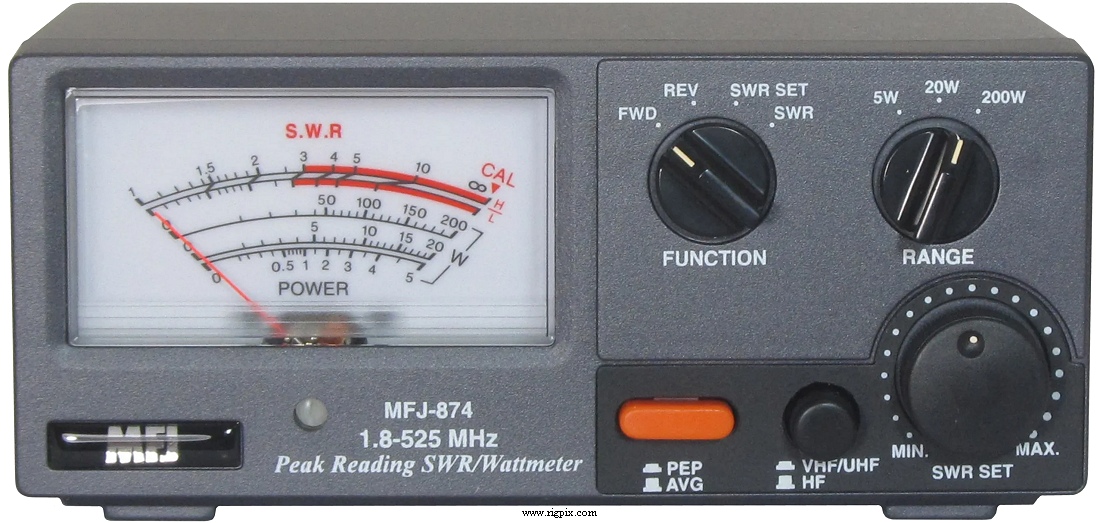

MFJ-874
SPECIFICATIONS
| Type: | SWR / Wattmeter |
| Frequency range: | 1.8-525 MHz |
| Power measure ranges: | 5 W
20 W
200 W |
| Insertion loss: | |
| Impedance / connectors: | 50 ohm / Four SO-239 |
| Power supply: | 13.8 VDC (Backlight) |
| Current drain / power consumption: | ? mA |
| Dimensions (W*H*D): | 190*85*135 mm (7.5*3.35*5.3") |
| Weight: | 816 g (1.8 lb) |
| Manufactured: | Taiwan, 20xx-20xx (Discontinued) |
| Additional info: |
PEP or average reading.
Accuracy: ±5 to 10% (Average)
Minimum power for accurate SWR measurement is 1 W
|
| Related documents: |
User manual (27 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
