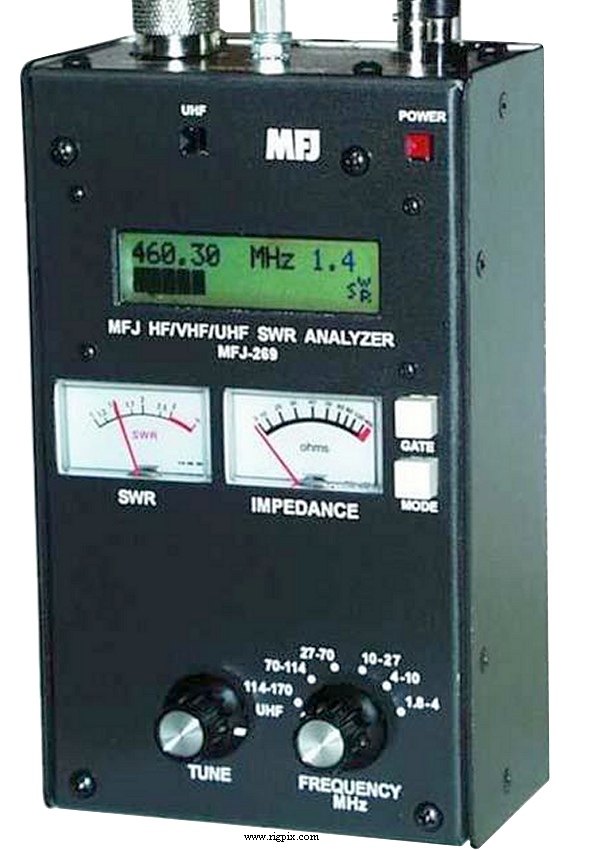

| Type: | HF / VHF / UHF SWR analyzer |
| Frequency range: | 1.8-170 / 415-470 MHz |
| RF connector: | N-jack |
| Power supply: | 12-15 VDC (Ten alkaline or rechargeable batteries, jumper selectable)
or 11-16 VDC external (Male barrel jack, center positive) |
| Current drain / power consumption: | Less than 250 mA |
| Dimensions (W*H*D): | 105*173*61 mm (4.13*6.8*2.4") |
| Weight: | 662 g (1.46 lb), without batteries
892 g (1.97 lb), with alkaline batteries |
| Manufactured: | 20xx-20xx (Discontinued) |
| Additional info: |
Battery charger circuit. BNC jack for frequency counter function.
|
| Related documents: |
User manual (732 KB)
Schematic diagram (587 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
