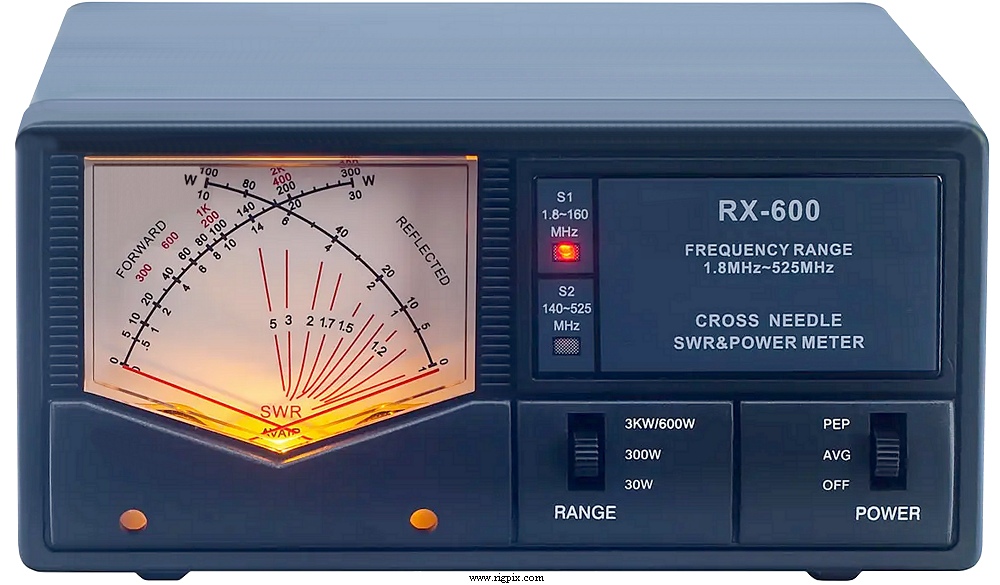

| Type: | SWR / Power meter |
| Frequency range: |
Sensor 1: 1.8-160 MHz
Sensor 2: 140-525 MHz
|
| Power measure ranges: |
1.8-160 MHz
30 / 300 / 3000 W
140-525 MHz
30 / 300 / 600 W
|
| Insertion loss: | Max 0.2 dB |

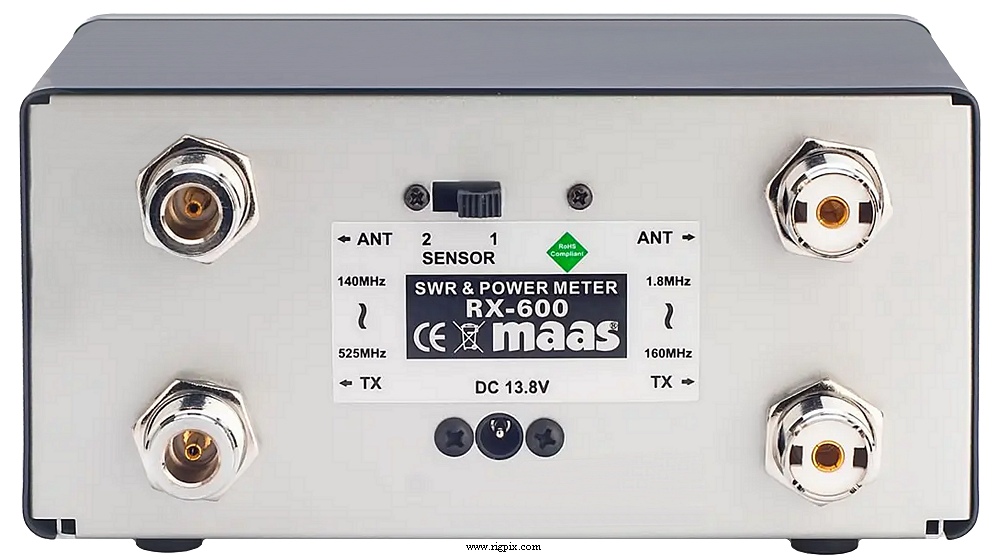

| Impedance / connectors: | 50 ohm / Two SO-239 and two N-jacks |
| Power supply: | 13.8 VDC (Backlight) |
| Current drain / power consumption: | ? mA |
| Dimensions (W*H*D): | 150*100*65 mm (5.9*3.94*2.56") |
| Weight: | 720 g (1.59 lb) |
| Manufactured: | 2014-20xx |
| Additional info: |
PEP or average.
Accuracy: ±5 to 7.5% of full scale (Depending on range)
Minimum power for accurate SWR measurement is 500 mW
|
| Related documents: |
User manual (560 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
