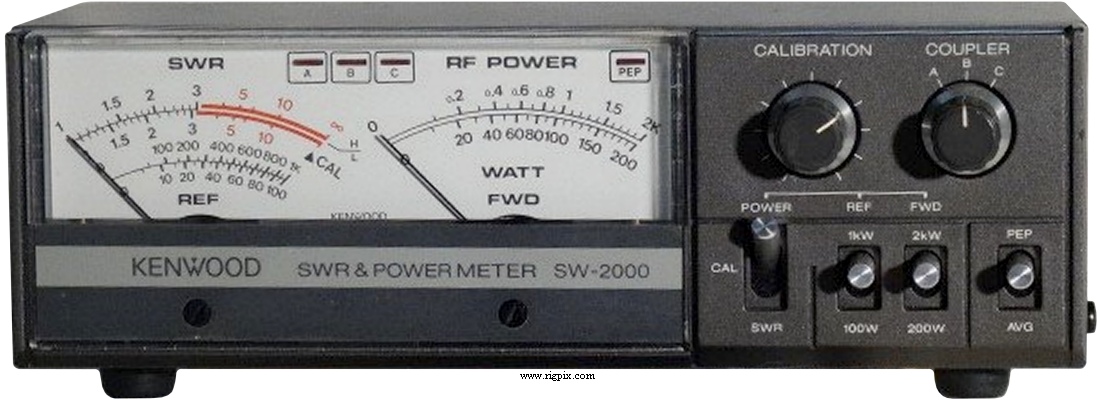

| Type: | SWR / Power meter |
Frequency range
depending on coupler(s): | 1.8-54 MHz, 1.8-150 MHz, 140-450 MHz |
| Power measure ranges: | 200 W (HF/2 m/70 cm)
2 KW / 600 W (HF/6 m) |
| Insertion loss: | Less than 0.3 or 0.5 dB (Depending on coupler) |
| Impedance / connectors: | 50 ohm / SO-239 |
| Power supply: | 11-15 VDC (Male barrel jack, center positive) |
| Current drain/power consumption: | Max 100 mA |
| Dimensions (W*H*D): | 196*63*78 mm (7.72*2.48*3.07") |
| Weight: | 650 g (1.43 lb) |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: |
Average or PEP measurement. Backlit meters.
Accuracy: ±10% of full scale
Minimum power for accurate SWR measurement is 3 W
|
| Related documents: |
User manual (4.9 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
SWC-1
SWC-2
SWC-3
|
Antenna coupler. 1.8-150 MHz, 200 W
Antenna coupler. 140-450 MHz, 200 W

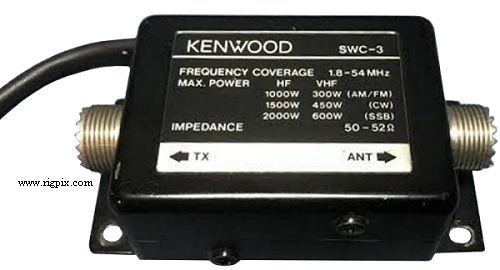

Antenna coupler. 1.8-30 / 50-54 MHz, 2 KW / 600 W
|
|
