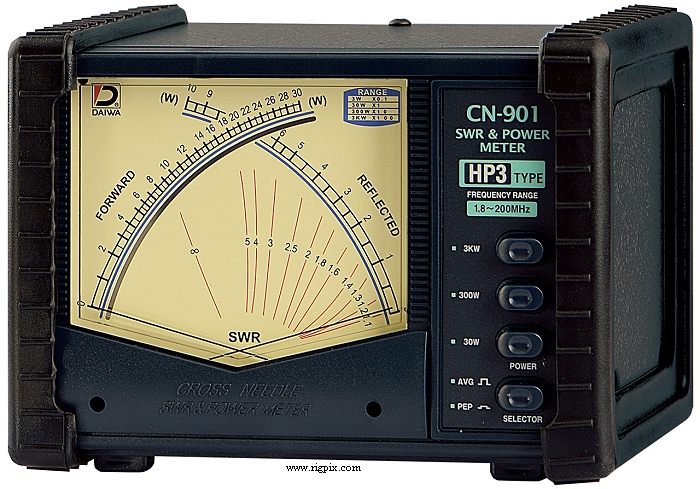

Daiwa CN-901HP3
SPECIFICATIONS
| Type: | SWR / Power meter |
| Frequency range: | 1.8-200 MHz |
| Power measure ranges: | 30 W
300 W
3 KW |
| Insertion loss: | |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Power supply: | 12-14 VDC (Male barrel jack, center positive), for backlight and PEP mode |
| Current drain/power consumption: | ? mA |
| Dimensions (W*H*D): | 157*112*116 mm (6.18*4.41*4.57") |
| Weight: | 1 Kg (2.2 lb) |
| Manufactured: | Japan, 2017-20xx |
| Additional info: |
Accuracy: ±10% of full scale.
Minimum power for accurate SWR measurement is 5 W.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
