Uniden DFR6

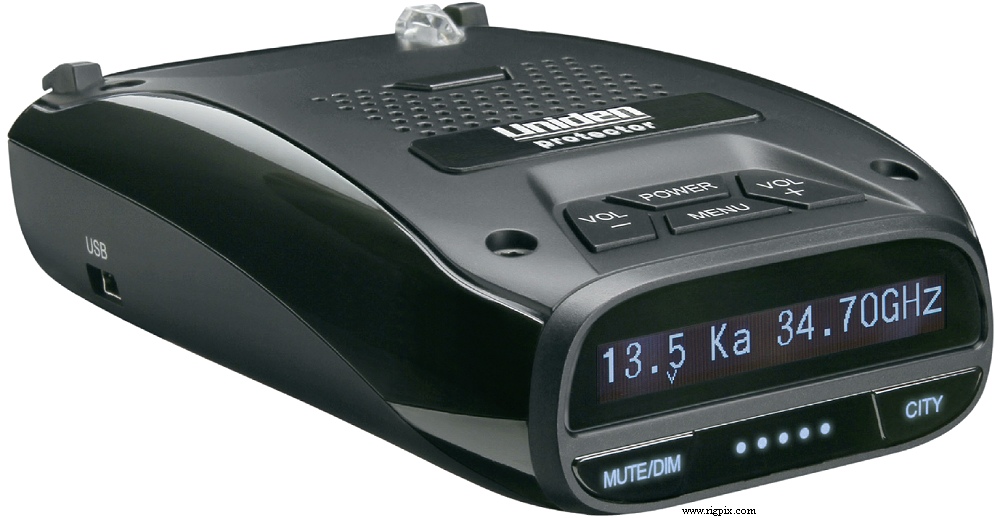

A picture of Uniden DFR6

SPECIFICATIONS

GENERAL
Type:Radar and laser detector
Band(s):
X-band:  10.525 GHz
K-band:  24.150 GHz
Ka-band:  33.4-36.0 GHz
Detector type(s):Scanning frequency discriminator
Antenna type:Linear polarized E-vector, vertical
RDD protection:VG2 and Spectre I / IV / IV+
Laser detection:800-1100 nm. 360° "Eagle eye". Pulse width discriminator
Power supply:11-16 VDC
Current drain / power consumption:? mA
Dimensions (W*H*D):69*30*110 mm (2.72*1.18*4.33")
Weight:170 g (6 oz)
Other features: OLED display. POP mode. City/Highway mode. Dimmer.
Voice alert. Advanced K and Ka band filters. Mini USB2-jack.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ?
2nd IF: ?
Sensitivity:
Selectivity:




MISCELLANEOUS
Manufactured:Korea, 201x-201x (Discontinued)
Additional info:
Related documents:User manual (1.2 MB)
Reviews:
Options / Accessories:
- -
