| GENERAL |
| Type: | Radar detector |
| Band(s): |
| X-band: | 10.525 GHz |
| K-band: | 24.150 GHz |
|
| Detector type(s): | |
| Antenna type: | Horn |
| RDD protection: | No |
| Laser detection: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | ? mA |
| Dimensions (W*H*D): |
Early version: 124*25*127 mm (4.88*1*5")

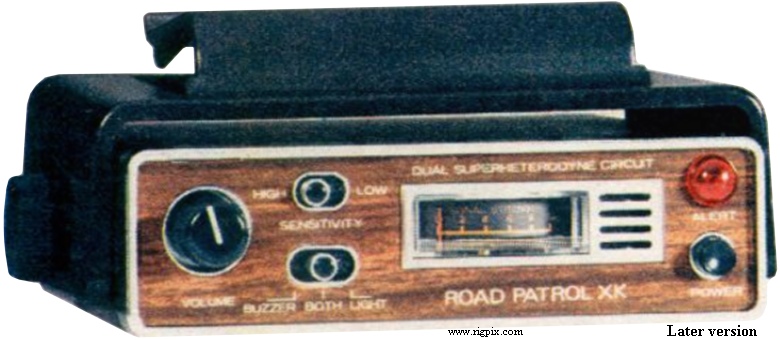

Later version: 127*37*124 mm (5*1.44*4.88")
|
| Weight: | ? g (? oz) |
| Other features: | Signal meter. High/Low sensitivity setting. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? MHz
|
| Sensitivity: | High/low selectable |
| Selectivity: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: |
Early version: 1982-1983 (Discontinued)
Later version: 1984-198x (Discontinued)
|
| Additional info: |
New price 1983 in the US: $219.95 (Early version)
New price 1984 in the US: $179.95 (Later version)
|
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
